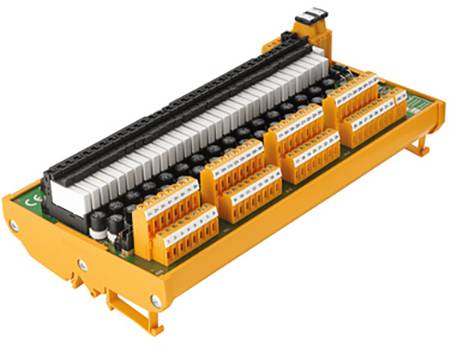

TBY-ADV151-48-PS-2KB-S Weidmüller Content: 1 pc(s)
EAN:
Part number:
Item no:
Product type
Transfer module
Total no. of pins
50
Connection
Screws
AWG
26 - 12
Stripping length (max.)
6 mm
Technical specifications
- Number of pins (control side): 50-pin plug
- Pollution degree: 2
- clamping range, min.: 0.13 mm²
- Switch: No
- Power LED status: Green
- Power supply fuse: 1 A
- Connection to PLC: Yokogawa Centum CS3000
- Connection to card: ADV151, ADV161 (2 TBY by Card)
- Nominal voltage: 18…30 V DC
- LED status display per relay: Green
- Fuse per relay: Yes
- Mechanical life: 5 x 10 6 circuits
- Input voltage: 48 V DC ± 10%
- Input current: 7 mA (fuse on) / 0.5mA (fuse off)
- Material contacts: Agni gold plated
- maximum DC continuous current: 10 mA
- Distance input/output: ≥ 5.5 mm
- Product type
Transfer module
- Total no. of pins
50
- Connection
Screws
26 - 12
- Stripping length (max.)
6 mm
- Dim
(L x W x H) 317 x 131 x 95 mm
- Connector (field)
Screws
- Connector (control)
Connector
- Weight
910 g
- Content
1 pc(s)
- Number of pins
50
- Width
131 mm
- Height
95 mm
- Length
317 mm
- RoHS-compliant
Yes
- Max. temperature
+70 °C
- Min. temperature
-25 °C
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (max.)
6 mm²
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2242283 TBY-ADV151-48-PS-2KB-S Weidmüller Content: 1 pc(s)
