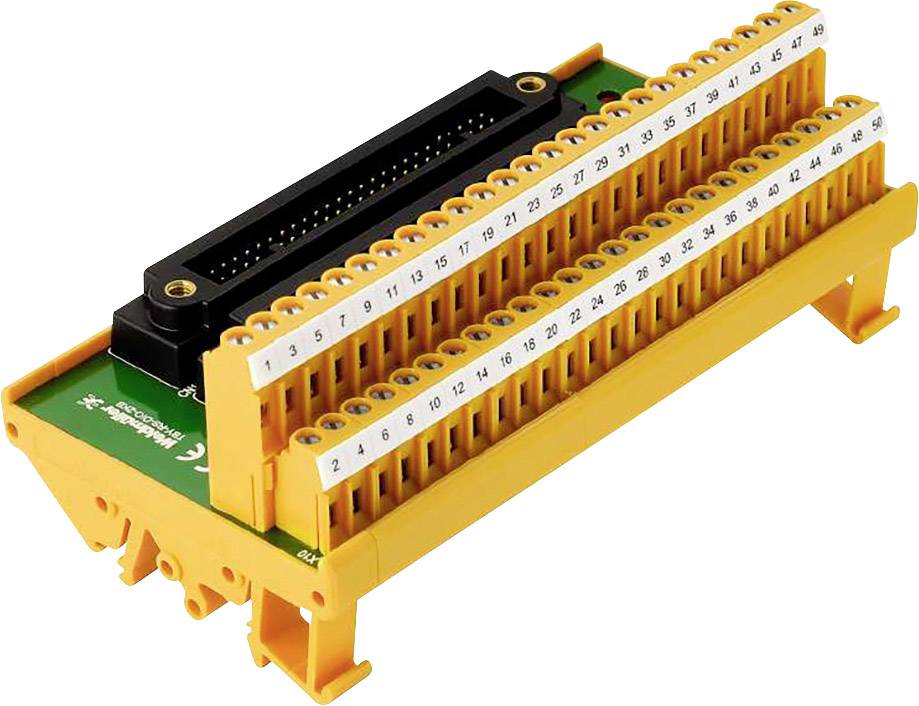

TBY-C3-UNIV-2KB-S Weidmüller Content: 1 pc(s)
EAN:
Part number:
Item no:
Product type
Transfer module
Total no. of pins
50
Connection
Screws
AWG
26 - 12
Stripping length (max.)
6 mm
Technical specifications
- Number of pins (control side): 50-pin connector
- Over voltage category III
- Pollution level: 2
- Clamping range, min.: 0.13 mm²
- Separation per channel: No.
- Switch: No.
- Fuse through channel: No.
- Power LED status: No.
- Power supply fuse: No.
- Connection to PLC: Yokogawa Centum CS3000
- Connection to card: ADV151, ADV161, ADV551, ADV561, AAR145
- OPERATING VOLTAGE 50 V AC / 70 V DC
- Maximum current per channel: 1 A.
- Product type
Transfer module
- Total no. of pins
50
- Connection
Screws
26 - 12
- Stripping length (max.)
6 mm
- Dim
(L x W x H) 135 x 70 x 56 mm
- Connector (field)
Screws
- Connector (control)
Connector
- Operating current
1 A
- Weight
181.9 g
- Content
1 pc(s)
- Number of pins
50
- Width
70 mm
- Height
56 mm
- Length
135 mm
- RoHS-compliant
Yes
- Max. temperature
+70 °C
- Min. temperature
-25 °C
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (max.)
6 mm²
- UKCA
yes
