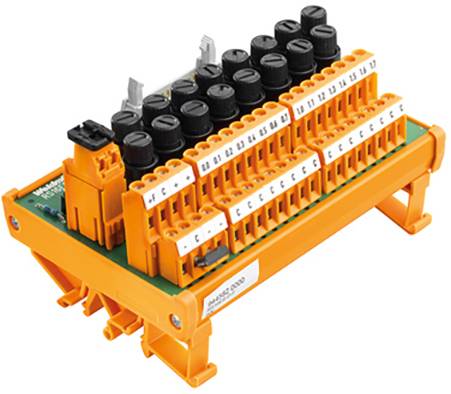

Image similar
TBY-SAI143-F-L-PS-2KS-Z Weidmüller Content: 1 pc(s)
EAN:
Part number:
Item no:
Product type
Transfer module
Total no. of pins
40
Connection
Pull spring
AWG
24 - 14
Stripping length (max.)
7.5 mm
Technical specifications
- Number of poles (control side): 40-pin plug
- Overvoltage category: III
- Pollution degree: 2
- clamping range, min.: 0.13 mm²
- Separation per channel: No
- Switch: No
- Fuse by channel: 1 A
- Supply voltage LED status: Green
- Power supply fuse: 6.3 A
- Connection to PLC: Yokogawa Pro-safe
- Connection to card: SAI143
- Operating voltage: 24 V DC
- Maximum current per channel: 1 A
- Max. Current for ground: 1 A.
- Product type
Transfer module
- Total no. of pins
40
- Connection
Pull spring
24 - 14
- Stripping length (max.)
7.5 mm
- Dim
(L x W x H) 133 x 131 x 107 mm
- Connector (field)
Screws
- Connector (control)
Connector
- Weight
403.4 g
- Content
1 pc(s)
- Number of pins
40
- Width
131 mm
- Height
107 mm
- Length
133 mm
- RoHS-compliant
Yes
- Max. temperature
+70 °C
- Min. temperature
-25 °C
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- Features
+ LED
- UKCA
yes
