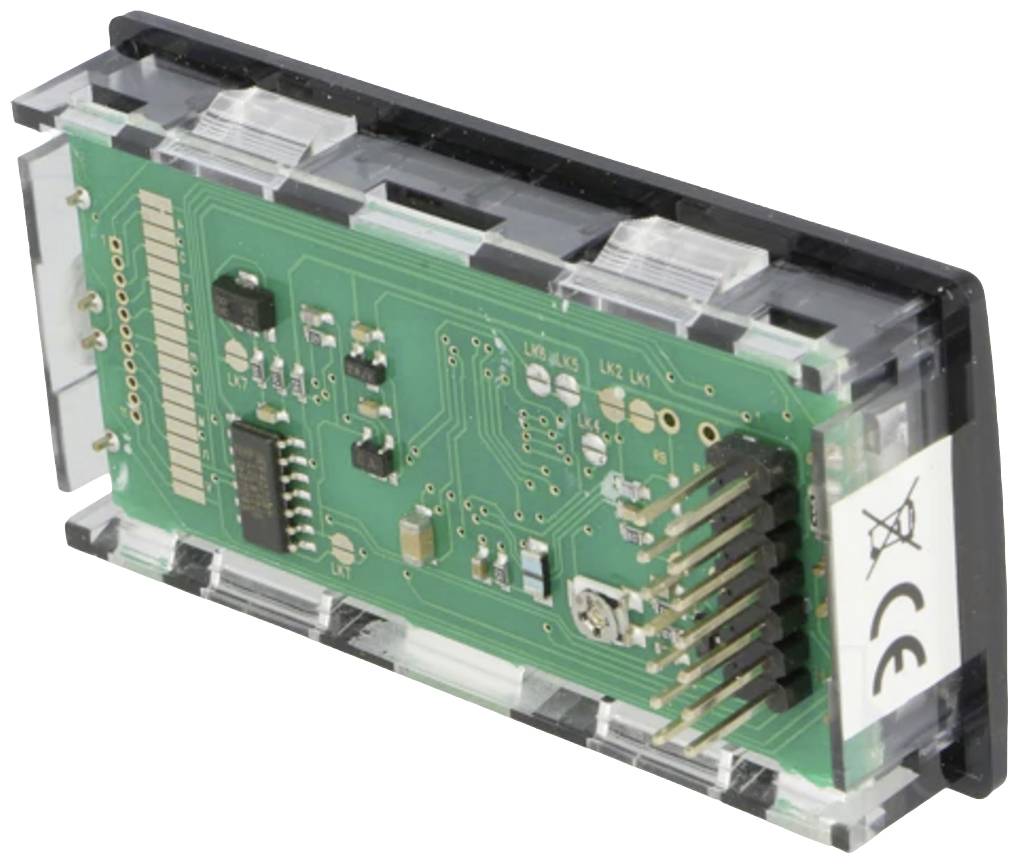

Electronic circuit board in a transparent plastic casing, with multiple connections and components for electrical interconnection.

1/2

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

100 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 27.72 / piece)

€ 27.72

plus VAT.

Report legal concerns

Highlights & Details

Digital multimeter for installation in a control panel

Operating voltage 3 V to 12 V DC
Total mass of measuring and operating voltage is possible
Display ±199.9
Accuracy ±0.1 %
Display symbols ºF, ºC, μ, m, A, V, K, M, O individually be individually selected
BacklightingBlack
Assembly dimensions 33 x 68 mm

Technical specifications

Product type: Digital rack-mount meter

Reading type: DC voltage
DC current

Reading range (min.): -0.2 V

Type: DPM962-TG

Reading range (max.): 0.2 V

Display technology: LCD

: IP65 (on front)/IP20 (on back)

Recess width: 68 mm

Display (counts): 1999

Recess height: 33 mm

Operating voltage: 5 V DC
9 V DC

Dim: (L x W x H) 25 x 72 x 36 mm

Max. operating voltage: 9 V DC

Min. operating voltage: 5 V DC

Display lighting: green

Recess depth: 24 mm

Factory colour: Black

Width: 72 mm

Height: 36 mm

Length: 25 mm

Frame width: 72 mm

Frame height: 0.36 cm

Digits: 1999

Display (details): LCD

Assembly dimensions: 33 x 68 mm

Power supply (details): 5 V/DC (3 - 7 V) or 9 V/DC (7 - 12 V)

Current consumption: 2 mA

Tolerance: ± 0.1% (+ 1 Digit)

Display range: 0 - 1999

Reading range: ± 200 mV

Documents & Downloads

Datasheet

Datasheet 101757 TDE Instruments DPM962-TG Digital rack-mount meter ± 200 mV

User & Safety Instructions

User & Safety Instructions 101757 TDE Instruments DPM962-TG Digital rack-mount meter ± 200 mV

Conformity certificate

Conformity certificate 101757 TDE Instruments DPM962-TG Digital rack-mount meter ± 200 mV

Description

Digital 2000 Count LCD panel meter with coloured display lighting for standard DIN panel mounting. The instrument can be operated at 5 or 9 V / DC. Ideal for use in power supplies or when using a single voltage source. Symbols for the representation of º F, ºC, μ, m, A, V, K, M, O can be individually selected. By simply adding resistors (voltage dividers, shunt) or adapters you can achieve almost any measurement range.
