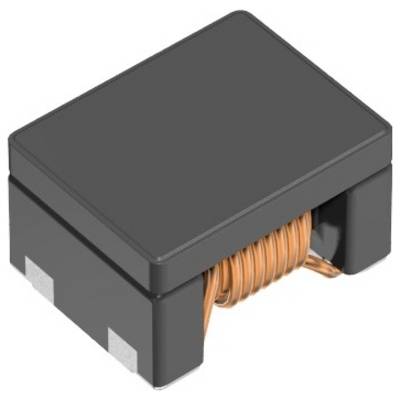

TDK ACP3225-102-2P-T000 Gleichtaktdrosseln/Filter für Stromleitungen Choke SMD 3225 4.1 µH 1000 Ω 1.5 A 1 pc(s) #####Tap
Part number:
Item no:
Packaging type
#####Tape and Reel
Product type
Choke
Type
SMD
Inductance (L)
4.1 µH
Max. temperature
85 °C
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 0.73
10
8% = € 0.06
€ 0.67
25
11% = € 0.08
€ 0.65
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 0.73 / piece)
€ 0.73
plus VAT.
14-day return policy included
Highlights & Details
TDK chip-common mode filter ACP3225-102-2P-T000
- Chip common-mode filter for DC power supply lines.
- Reduces power consumption and improves EMC suppression thanks to low DC resistance and excellent common clock impedance.
- Compatible with high-density portable devices that are getting smaller and lighter as the height has been reduced.
- Operating temperature range -40°C to +85°C.
- This text is machine translated.
Technical specifications
- Tape & Reel
- 2 lines
- Packaging type
#####Tape and Reel
- Product type
Choke
- Type
SMD
- Type
3225
- Inductance (L)
4.1 µH
- Impedance at 100 MHz
1000 Ω
- Test frequency
10 MHz
- Sample rate
100 MHz
- Tolerance ±
25 %
- Nominal voltage
60 V DC
- Nominal current
1.5 A
- Material
Duplex steel
- Length
3.2 mm
- Width
2.5 mm
- Height
1.9 mm
- Min. temperature
-40 °C
- Max. temperature
85 °C
- Industrial packaging
Yes
- Content
1 pc(s)
- Dim
(L x W x H) 3.2 x 2.5 x 1.9 mm
- RoHS-compliant
Yes
- Type
Gleichtaktdrosseln/Filter für Stromleitungen
- UKCA
yes
