TDK B57045K0472K000 NTC thermistor Radial lead 4.7 kΩ 0.45 W 1 pc(s)
Part number:
Item no:
Product type
NTC thermistor
Type
Radial lead
Resistance
4.7 kΩ
Power rating
0.45 W
Tolerance ±
10 %
Datasheet (PDF)
Technical specifications
- Application: Temperature compensation, measurement and control
- ESD Packaging: No ESD
- Series B57045K
- Weight: 1 g
- Diameter, connection wire 0.6 mm
- Resistance tolerance: ±10 %
- Rated temperature 25°C.
- Rated output: 0.45 W
- Testing voltage 2,500 V
- Thermal conductivity (air): 9 mW/K
- Thermal cooling time constant (air): 75
- Climate category: 55/125/56
- Product type
NTC thermistor
- Type
Radial lead
- Resistance
4.7 kΩ
- Power rating
0.45 W
- Tolerance ±
10 %
- Min. temperature
-55 °C
- Max. temperature
+125 °C
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
B57045K0472K000
- Height
51.0 mm
- Mounting type
PCB mount
- CS
5 mm
- Operating temperature (max.)
125 °C
- Operating temperature (min.)
-55 °C
- Insulation resistance
100 MΩ
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3465056 TDK B57045K0472K000 NTC thermistor Radial lead 4.7 kΩ 0.45 W 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3465056 TDK B57045K0472K000 NTC thermistor Radial lead 4.7 kΩ 0.45 W 1 pc(s)
Description

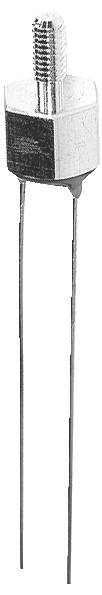

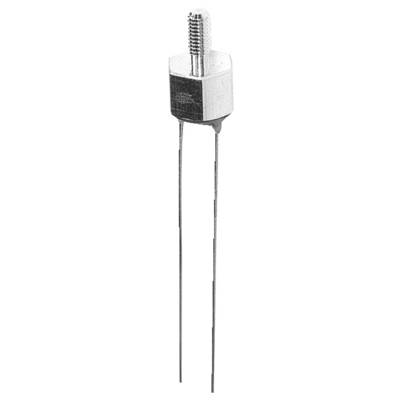

NTC for temperature measurement, aluminum casing
This text is machine translated.
This text is machine translated.
Features
- NTC resistor
- Thermistor for temperature compensation and temperature measurement
- Electrically insulated aluminum screw housing M3
- Good thermal coupling thanks to screw connection
- Tin-plated copper connections
