TDK B72205S0271K101 Metal oxide varistor 430 V 1 pc(s)
Part number:
Item no:
Product type
Metal oxide varistor
Type
circular
V<sub>v</sub>
430 V
CS
5 mm
(Ø)
7 mm
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
5
-
€ 0.13460
50
9% = € 0.01
€ 0.12234
100
13% = € 0.02
€ 0.11744
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 5
Total (€ 0.1346 / piece)
€ 0.67
plus VAT.
14-day return policy included
Technical specifications
- ESD packing ESD
- Series B722
- Delivery form: Loose
- Diameter, Resistance element 7 mm
- Diameter, connection wire 0.6 mm
- Solder-ability 245 °C / 3 s.
- Resistance value_1: 0
- Power loss, max. 0.1 W.
- Max. OPERATING VOLTAGE (DC) 350 V DC
- Max. OPERATING VOLTAGE (AC) 275 V AC
- Testing voltage 2,500 V
- Varistor voltage (@1mA) 430 V
- Surge current 400 A.
- Energy absorption 8.6 J
- Capacity, type: 60 pF
- Response time, max. 25 ns
- Insulation resistance 10 MOhm
- APPROVALS UL,CSA,VDE,IEC,CQC,UL 94 V0
- Product type
Metal oxide varistor
- Type
circular
- Vv
430 V
- Material
Epoxide
- CS
5 mm
- Content
1 pc(s)
- (Ø)
7 mm
- Height
33.5 mm
- Width
4.3 mm
- Manufacturer part #
B72205S0271K101
- Dim
(Ø x H) 7 mm x 33.5 mm
- Capacitance
60 pF
- RoHS-compliant
Yes
- Peak current I(pp)
400 A
- Type
B72205S0271K101
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3523618 TDK B72205S0271K101 Metal oxide varistor 430 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3523618 TDK B72205S0271K101 Metal oxide varistor 430 V 1 pc(s)
Description

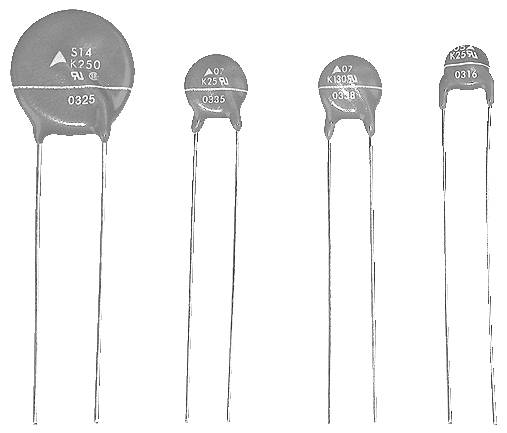

Metal oxide varistors
This text is machine translated.
This text is machine translated.
Features
- • Round varistor elements, wired
- • UL94V-0 epoxy coating
- • No load reduction up to 85°C.
