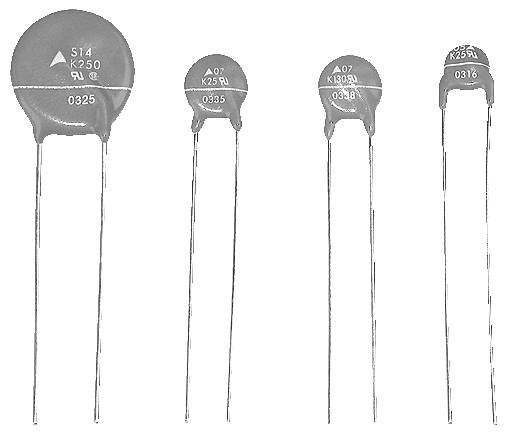

TDK B72207S0231K101 Metal oxide varistor 360 V 1 pc(s) Bulk
Part number:
Item no:
Packaging type
Bulk
Product type
Metal oxide varistor
Type
circular
V<sub>v</sub>
360 V
CS
5 mm
Datasheet (PDF)
Technical specifications
- ESD Packaging: No ESD
- Series B722
- Delivery form: Loose
- Diameter, Resistance element 9 mm
- Diameter, connection wire 0.6 mm
- Solder-ability 245 °C / 3 s.
- Power loss, max. 0.25 W.
- Max. OPERATING VOLTAGE (DC) 300 V DC
- Max. OPERATING VOLTAGE (AC) 230 V AC
- Testing voltage 2,500 V
- Varistor voltage (@1mA) 360 V
- Surge current 1,200 A.
- Energy absorption 17 J
- Capacity, type: 130 pF
- Response time, max. 25 ns
- APPROVALS UL,CSA,VDE,IEC,CQC,UL 94 V0
- Packaging type
Bulk
- Product type
Metal oxide varistor
- Type
circular
- Vv
360 V
- Material
Epoxide
- CS
5 mm
- Content
1 pc(s)
- (Ø)
9 mm
- Height
36.0 mm
- Width
4.0 mm
- Manufacturer part #
B72207S0231K101
- Dim
(Ø x H) 9 mm x 36.0 mm
- Capacitance
130 pF
- RoHS-compliant
Yes
- Peak current I(pp)
1.200 A
- Type
B72207S0231K101
- Operating temperature (max.)
85 °C
- Operating temperature (min.)
-40 °C
- Insulation resistance
10 MΩ
- Resistance
0 Ω
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3465087 TDK B72207S0231K101 Metal oxide varistor 360 V 1 pc(s) Bulk
User & Safety Instructions
User & Safety Instructions 3465087 TDK B72207S0231K101 Metal oxide varistor 360 V 1 pc(s) Bulk
Description
Metal oxide varistors
This text is machine translated.
This text is machine translated.
Features
- • Round varistor elements, wired
- • UL94V-0 epoxy coating
- • No load reduction up to 85°C.
