TDK B72210S0300K101 Metal oxide varistor 47 V 1 pc(s) Bulk
Part number:
Item no:
Packaging type
Bulk
Product type
Metal oxide varistor
Type
circular
V<sub>v</sub>
47 V
CS
7.5 mm
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
3
-
€ 0.23010
50
9% = € 0.02
€ 0.20913
100
13% = € 0.03
€ 0.20076
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 3
Total (€ 0.2301 / piece)
€ 0.69
plus VAT.
14-day return policy included
Technical specifications
- ESD Packaging: No ESD
- Series B722
- Delivery form: Loose
- Diameter, Resistance element 12 mm
- Diameter, connection wire 0.8 mm
- Solder-ability 245 °C / 3 s.
- Resistance value_1: 0
- Power loss, max. 0.05 W.
- Max. OPERATING VOLTAGE (DC) 38 V DC
- Max. OPERATING VOLTAGE (AC) 30 V AC
- Testing voltage 2,500 V
- Varistor voltage (@1mA) 47 V
- Surge current 500 A.
- Energy absorption 4.4 J
- Capacity, type: 2,750 pF
- Response time, max. 25 ns
- Insulation resistance 10 MOhm
- APPROVALS UL,CSA,VDE,IEC,CQC,UL 94 V0
- Packaging type
Bulk
- Product type
Metal oxide varistor
- Type
circular
- Vv
47 V
- Material
Epoxide
- CS
7.5 mm
- Content
1 pc(s)
- (Ø)
12 mm
- Height
39.5 mm
- Width
4.4 mm
- Manufacturer part #
B72210S0300K101
- Dim
(Ø x H) 12 mm x 39.5 mm
- Capacitance
2.750 pF
- RoHS-compliant
Yes
- Peak current I(pp)
500 A
- Type
B72210S0300K101
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3523629 TDK B72210S0300K101 Metal oxide varistor 47 V 1 pc(s) Bulk
User & Safety Instructions
User & Safety Instructions 3523629 TDK B72210S0300K101 Metal oxide varistor 47 V 1 pc(s) Bulk
Description

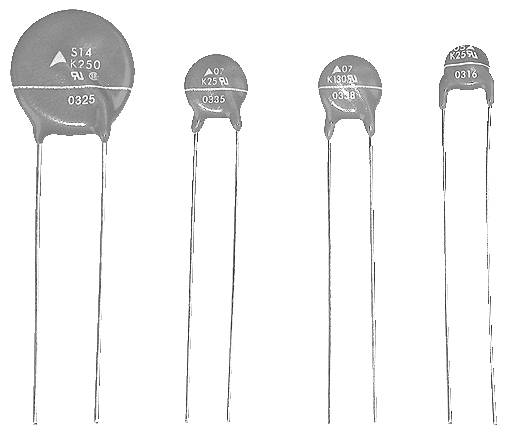

Metal oxide varistors
This text is machine translated.
This text is machine translated.
Features
- • Round varistor elements, wired
- • UL94V-0 epoxy coating
- • No load reduction up to 85°C.
