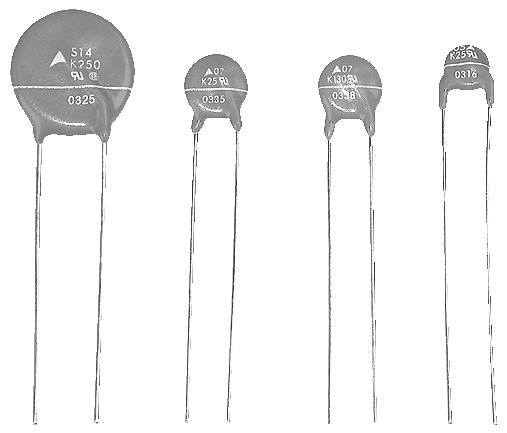

TDK B72220S0301K101 Metal oxide varistor 470 V 1 pc(s) Bulk
Part number:
Item no:
Packaging type
Bulk
Product type
Metal oxide varistor
Type
circular
V<sub>v</sub>
470 V
CS
10 mm
Datasheet (PDF)
Technical specifications
- ESD Packaging: No ESD
- Series B722
- Delivery form: Loose
- Diameter, Resistance element 21.5 mm
- Diameter, connection wire 1 mm
- Solder-ability 245 °C / 3 s.
- Power loss, max. 1 W.
- Max. OPERATING VOLTAGE (DC) 385 V DC
- Max. OPERATING VOLTAGE (AC) 300 V AC
- Testing voltage 2,500 V
- Varistor voltage (@1mA) 470 V
- Surge current 8,000 A.
- Energy absorption 173 J
- Capacity, type: 780 pF
- Response time, max. 25 ns
- APPROVALS UL,CSA,VDE,IEC,CQC,UL 94 V0
- Packaging type
Bulk
- Product type
Metal oxide varistor
- Type
circular
- Vv
470 V
- Material
Epoxide
- CS
10 mm
- Content
1 pc(s)
- (Ø)
21.5 mm
- Height
50.5 mm
- Width
5.6 mm
- Manufacturer part #
B72220S0301K101
- Dim
(Ø x H) 21.5 mm x 50.5 mm
- Capacitance
780 pF
- RoHS-compliant
Yes
- Peak current I(pp)
8.000 A
- Type
B72220S0301K101
- Operating temperature (max.)
85 °C
- Operating temperature (min.)
-40 °C
- Insulation resistance
10 MΩ
- Resistance
0 Ω
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3465083 TDK B72220S0301K101 Metal oxide varistor 470 V 1 pc(s) Bulk
User & Safety Instructions
User & Safety Instructions 3465083 TDK B72220S0301K101 Metal oxide varistor 470 V 1 pc(s) Bulk
Description
Metal oxide varistors
This text is machine translated.
This text is machine translated.
Features
- • Round varistor elements, wired
- • UL94V-0 epoxy coating
- • No load reduction up to 85°C.
