TDK B82720S2202N040 Gleichtaktdrosseln/Filter für Stromleitungen Common mode chokes SMD Contact spacing 12 mm 1.1 mH 65
Part number:
Item no:
Packaging type
Tape on Full reel
Product type
Common mode chokes
Type
SMD
Inductance (L)
1.1 mH
Resistance
65 mΩ
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.09
10
8% = € 0.16
€ 1.93
25
11% = € 0.22
€ 1.87
Volume discounts vary depending on the seller
You save € 0.00
Number
Tape on Full reel
Piece(s) (Content: )
Piece(s) (Content: )
Total (€ 2.09 / piece)
€ 2.09
plus VAT.
14-day return policy included
Highlights & Details

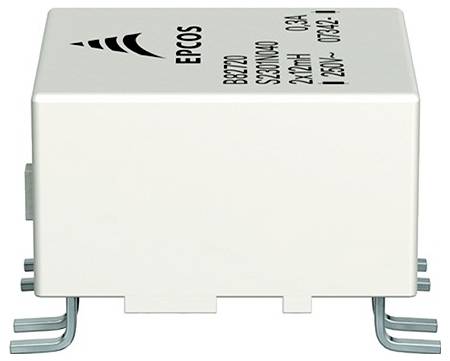

TDK Current-compensated toroid-core coil B82720S2202N040
- Approx. 0.7 % stray inductance for suppressing pulsed interference
- Suitable for reflow-soldering
- Complies with EN 60938-2 (VDE 0565-2)
- RoHS compliant
- This text is machine translated.
Our service for you
Technical specifications
- Packaging type
Tape on Full reel
- Product type
Common mode chokes
- Type
SMD
- Inductance (L)
1.1 mH
- Impedance at 25 MHz
20 Ω
- Impedance at 100 MHz
5 Ω
- Frequency
60 Hz
- Test frequency
10 kHz
- Sample rate
10 kHz
- Resistance
65 mΩ
- Nominal voltage
250 V AC
- Nominal current
2 A
- Material
Duplex steel
Plastic
- Length
16.6 mm
- Width
13.3 mm
- Height
10.8 mm
- Min. cross section
0.4 mm
- CS
12 mm
- Min. temperature
-40 °C
- Max. temperature
125 °C
- Weight
2.5 g
- IEC climate class
40/125/56
- Industrial packaging
Yes
- Content
1 pc(s)
- Dim
(L x W x H) 16.6 x 13.3 x 10.8 mm
- RoHS-compliant
Yes
- Type
Gleichtaktdrosseln/Filter für Stromleitungen
