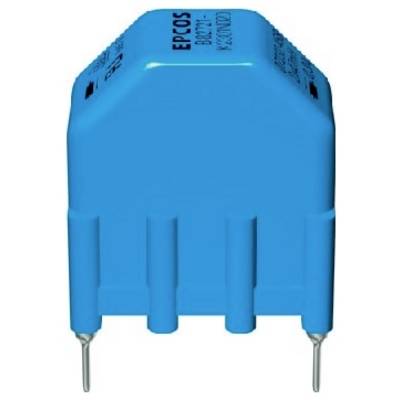

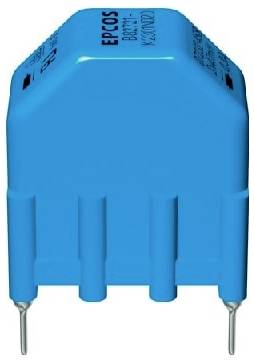

TDK B82721K2122N020 Gleichtaktdrosseln/Filter für Stromleitungen Choke THT 6.8 mH 280 mΩ 1.2 A 1 pc(s) Tray
Part number:
Item no:
Packaging type
Tray
Product type
Choke
Type
THT
Inductance (L)
6.8 mH
Resistance
280 mΩ
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.51
10
7% = € 0.18
€ 2.33
25
10% = € 0.26
€ 2.25
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.51 / piece)
€ 2.51
plus VAT.
14-day return policy included
Highlights & Details
TDK current line reactor B82721K2122N020
- Current-compensated double toroid-core chokes
- Ferrite core with epoxy coating (UL 94 V-0)
- Plastic housing (UL 94 V-0)
- Cast earth (UL 94 V-0)
- Sector winding
- High resonance frequency through special winding technology
- Approx. 1% stray inductance for symmetrical interference suppression
- Suitable for wave soldering
- Design corresponds to EN 60938-2 (VDE 0565-2) and UL 1283
- Approved for use according to EN 60335-1 (VDE 0700-1)2)
- RoHS compliant
- This text is machine translated.
Technical specifications
- Suitable for wave soldering
- Packaging type
Tray
- Product type
Choke
- Type
THT
- Inductance (L)
6.8 mH
- Frequency
60 Hz
- Test frequency
10 kHz
- Sample rate
10 kHz
- Tolerance ±
30 %
- Resistance
280 mΩ
- Nominal voltage
250 V AC
- Nominal current
1.2 A
- Material
Duplex steel
- Length
18.2 mm
- Width
13.2 mm
- Height
20.3 mm
- Min. cross section
0.7 mm²
- Min. temperature
-40 °C
- Max. temperature
125 °C
- Weight
4.875
- IEC climate class
40/125/21
- Industrial packaging
Yes
- Content
1 pc(s)
- Dim
(L x W x H) 18.2 x 13.2 x 20.3 mm
- RoHS-compliant
Yes
- Type
Gleichtaktdrosseln/Filter für Stromleitungen
- UKCA
yes
