TDK B82791H2251N020 Gleichtaktdrosseln/Filter für Stromleitungen Choke THT 47 mH 2.4 Ω 250 mA 1 pc(s) Tray
Part number:
Item no:
Packaging type
Tray
Product type
Choke
Type
THT
Inductance (L)
47 mH
Resistance
2.4 Ω
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.93
10
8% = € 0.22
€ 2.71
25
11% = € 0.31
€ 2.62
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.93 / piece)
€ 2.93
plus VAT.
14-day return policy included
Highlights & Details

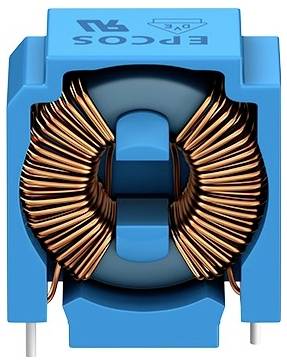

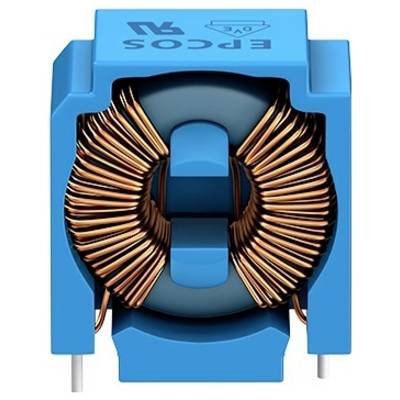

TDK Current compensated toroid core B82791H2251N020
- Current-compensated double-ring coil
- MnZn ferrite core with epoxy coating (UL 94 V-0)
- Plastic casing (UL 94 V-0)1) with cast pins
- Sector winding
- Air and creepage distances ≥ 3 mm
- Very compact design, suitable for the subsequent EMC adjustment on finished PCBs
- Models with increased inductance/current ratio (B82791K2*A040)
- High resonance frequency thanks to special winding technology and no potting compound
- Up to 1.7% stray inductance for symmetrical interference suppression
- Suitable for wave soldering
- Complies with EN 60938-2 (VDE 0565-2)
- RoHS compliant
- This text is machine translated.
Technical specifications
- Packaging type
Tray
- Product type
Choke
- Type
THT
- Inductance (L)
47 mH
- Frequency
50 Hz
- Test frequency
10 kHz
- Sample rate
10 kHz
- Resistance
2.4 Ω
- Nominal voltage
250 V AC
- Nominal current
250 mA
- Material
Duplex steel
- Length
15.3 mm
- Width
7.4 mm
- Height
17.6 mm
- Min. temperature
-40 °C
- Max. temperature
125 °C
- Weight
2.89
- Industrial packaging
Yes
- Content
1 pc(s)
- Dim
(L x W x H) 15.3 x 7.4 x 17.6 mm
- RoHS-compliant
Yes
- Type
Gleichtaktdrosseln/Filter für Stromleitungen
- UKCA
yes
