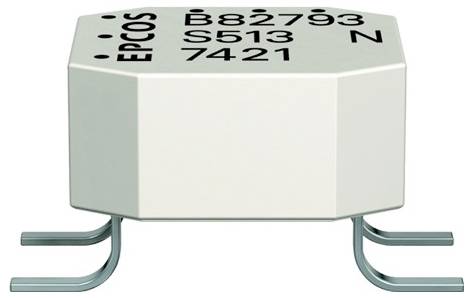

TDK B82793C0105N265 Gleichtaktdrosseln/Filter für Stromleitungen Choke SMD 1 mH 140 mΩ 700 mA 1 pc(s) Tape on Full reel
Part number:
Item no:
Packaging type
Tape on Full reel
Product type
Choke
Type
SMD
Inductance (L)
1 mH
Resistance
140 mΩ
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 1.50
10
7% = € 0.11
€ 1.39
Volume discounts vary depending on the seller
You save € 0.00
Number
Tape on Full reel
Piece(s) (Content: )
Piece(s) (Content: )
Total (€ 1.50 / piece)
€ 1.50
plus VAT.
14-day return policy included
Highlights & Details
TDK common mode choke B82793C0105N265
- Current-compensated double choke
- Ferrite core
- LCP housing (UL 94 V-0), silicone cast
- Bifilament winding (B82793C0)
- Sector winding (B82793S0)
- High nominal current, low overall height
- Complies with AEC-Q200 (Ld 4.7 mH) requirements
- Suitable for reflow-soldering
- RoHS compliant
- This text is machine translated.
Our service for you
Technical specifications
- Packaging type
Tape on Full reel
- Product type
Choke
- Type
SMD
- Inductance (L)
1 mH
- Test frequency
100 kHz
- Sample rate
100 kHz
- Resistance
140 mΩ
- Nominal voltage
80 V DC
42 V AC
- Nominal current
700 mA
- Material
Duplex steel
LCP
- Length
7.1 mm
- Width
6 mm
- Height
4.8 mm
- Min. temperature
-40 °C
- Max. temperature
125 °C
- Weight
0.25 g
- Industrial packaging
Yes
- Content
1 pc(s)
- Dim
(L x W x H) 7.1 x 6 x 4.8 mm
- RoHS-compliant
Yes
- Type
Gleichtaktdrosseln/Filter für Stromleitungen
Documents & Downloads
Datasheet
Datasheet 3555243 TDK B82793C0105N265 Gleichtaktdrosseln/Filter für Stromleitungen Choke SMD 1 mH 140 mΩ 700 mA 1 pc(s) Tape on Full reel
User & Safety Instructions
User & Safety Instructions 3555243 TDK B82793C0105N265 Gleichtaktdrosseln/Filter für Stromleitungen Choke SMD 1 mH 140 mΩ 700 mA 1 pc(s) Tape on Full reel
