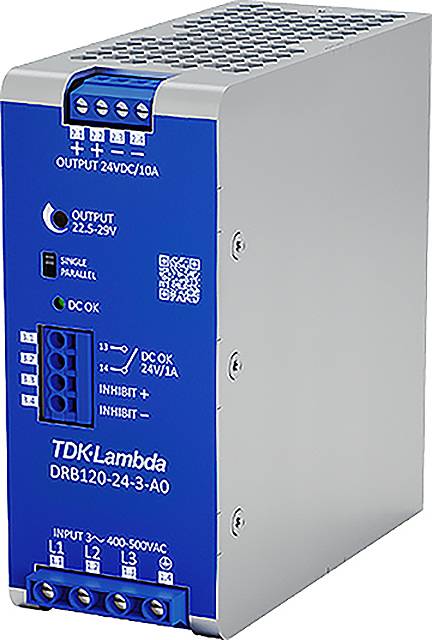

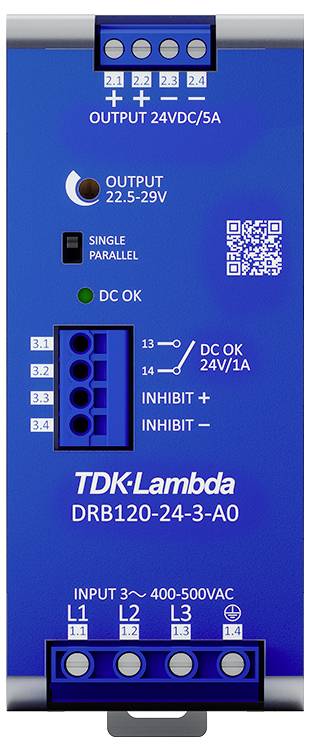

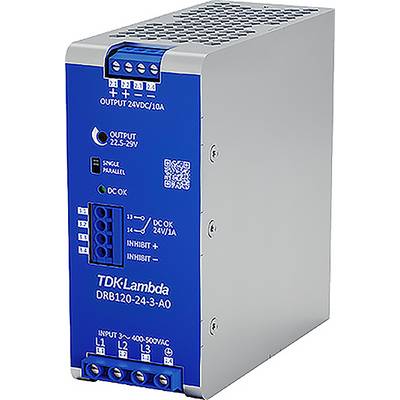

TDK DRB120-24-3-A0 Rail mounted PSU (DIN) 29 V DC 5 A 120 W No. of outputs:1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Rail mounted PSU (DIN)
- Min. input voltage
352 V
- Inputs
3
- Input voltage (max.)
577 V
- Max. output current
5 A
- Output current (max.) - rounded
5 A
120 W
- Output type (power supply units)
Adjustable
- Phases
3
- Output voltage (nominal)
29 V DC
- No. of outputs
1 x
- Connection
Screw terminal
- Dim
(L x W x H) 135.7 x 55 x 129 mm
- Weight
660 g
- Output voltage (max.)
29 V DC
- Output voltage (min.)
22.5 V DC
- Operating temperature (max.)
70 °C
- Operating temperature (min.)
-25 °C
- Manufacturer part #
DRB120-24-3-A0
- Content
1 pc(s)
- Width
55 mm
- Height
129 mm
- Length
135.7 mm
- Type
DRB120-24-3-A0
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3375219 TDK DRB120-24-3-A0 Rail mounted PSU (DIN) 29 V DC 5 A 120 W No. of outputs:1 x Content 1 pc(s)
Description
DIN rail power supplies from the DRB series are part of the industrial history of TDK Lambda. They can be used in many applications, from conventional control cabinets to decentralized machines and systems to solutions in information and communication technology. The series covers the standard output voltages of 12, 24, 48 and 72 volts, whereby the user can select between screw and push-in terminals. All seven major electrical safety standards are covered, and WAS provides global market access. The high operating efficiency of the DRB, the conservative thermal design and the redundant overvoltage protection measures ensure maximum system operating time. The reliability of the product is also supported by a reduced number of components and the strict testing requirements of TDK-Lambda. Overall, the DRB 3-Phase series offers an excellent balance between functionality and price.
