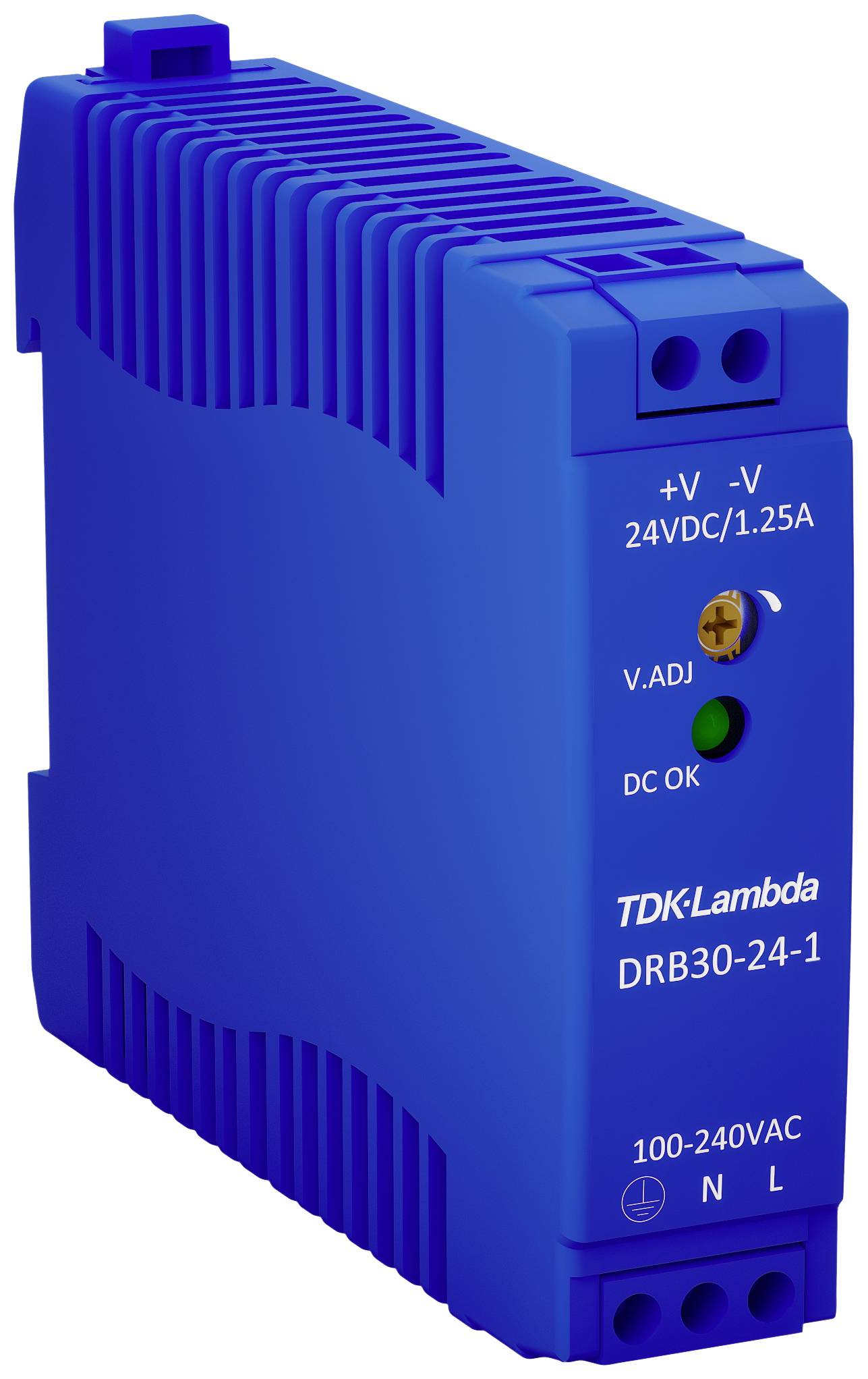

TDK-Lambda DRB30-24-1 Rail mounted PSU (DIN) 24 V DC 1.25 A 30 W No. of outputs:1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 53.77 / piece)
€ 53.77
plus VAT.
Only 2 Piece(s) available
Highlights & Details
TDK-Lambda DRB30-24-1 DIN rail power supply
- 24 V DC / 1.25 A
- Power: 30 W
- Input 1-phase
- Input voltage range 85 - 264 V/AC
- Connections (components): screw terminal
- Temperature range -20 to +70 °C
Technical specifications
- Product type
Rail mounted PSU (DIN)
- Min. input voltage
85 V AC
- Output voltage
24 V DC
- Input voltage
85 - 264 V AC
- Input voltage (max.)
264 V AC
- Max. output current
1.25 A
- Output current (max.) - rounded
1.25 A
30 W
- Output type (power supply units)
Adjustable
- Phases
1
- Output voltage (nominal)
24 V DC
- No. of outputs
1 x
- Connection
Screw terminal
- Dim
(W x H) 21 mm x 75 mm
- Weight
95 g
- Output voltage (max.)
28 V DC
- Output voltage (min.)
24 V DC
- Operating temperature (max.)
70 °C
- Operating temperature (min.)
-20 °C
- Manufacturer part #
DRB30-24-1
- Content
1 pc(s)
- PSU features
Surge protection
- Width
21 mm
- Height
75 mm
- Max. temperature
+70 °C
- Min. temperature
-20 °C
- Type
DRB30-24-1
- Connections
Screw terminals
- Output rating
30 W
- Output current (details)
1250 mA
- UKCA
yes
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 1092072 TDK-Lambda DRB30-24-1 Rail mounted PSU (DIN) 24 V DC 1.25 A 30 W No. of outputs:1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1092072 TDK-Lambda DRB30-24-1 Rail mounted PSU (DIN) 24 V DC 1.25 A 30 W No. of outputs:1 x Content 1 pc(s)
Conformity certificate
Conformity certificate 1092072 TDK-Lambda DRB30-24-1 Rail mounted PSU (DIN) 24 V DC 1.25 A 30 W No. of outputs:1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 1092072 TDK-Lambda DRB30-24-1 Rail mounted PSU (DIN) 24 V DC 1.25 A 30 W No. of outputs:1 x Content 1 pc(s)
Description
Compact DIN rail power supply unit for a wide range of important areas of application for simple snapping onto TS 35 mounting rails. Thanks to low idle power consumption and an excellent degree of efficiency, the device meets the ErP directive
This text is machine translated.
This text is machine translated.
Features
- Surge protection
- Overvoltage protection
- Output voltage can be set
- Safety and EMC according to CE, EN/UL/CSA 60950-1, UL-508, EN 55022-B, CISPR22-B
- PSU type: SMPS
- Screw terminal connectors
Hints
This product is a component power supply considered apparatus and is only to be installed by qualified persons within other equipment and must not be operated as a stand alone product.
This product is for sale to business to business customers and can be obtained via distribution channels.
It is not intended for sale to end users.
