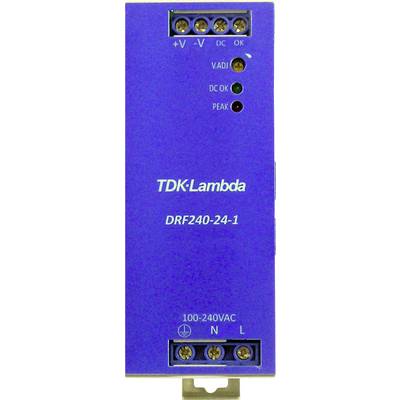

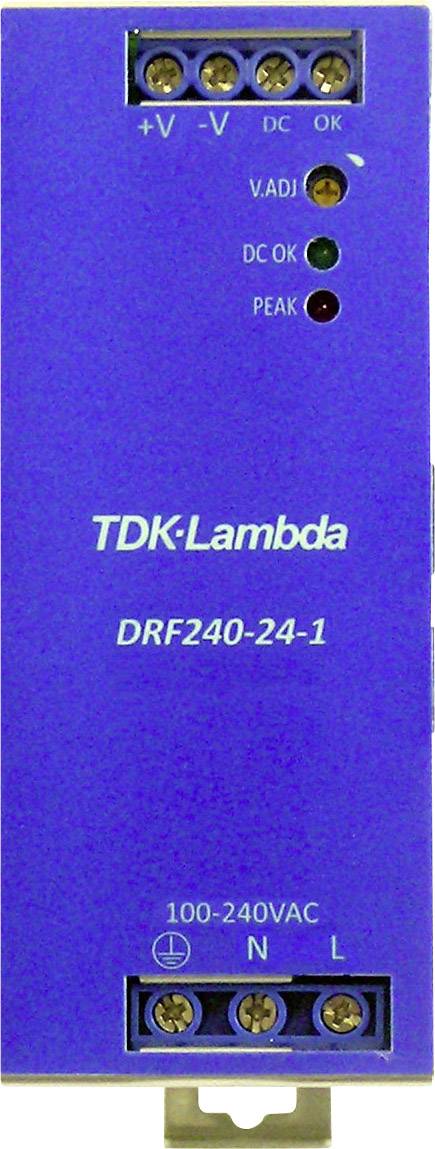

TDK-Lambda DRF240-24-1/HL Rail mounted PSU (DIN) Consumption (standby) 0.5 W 24 V DC 10 A 240 W No. of outputs:1 x Conte
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 318.49 / piece)
€ 378.15
-16 %
€ 318.49
plus VAT.
Only 2 Piece(s) available
Highlights & Details
ATEX and GL Marine DIN-Rail/DIN rail PSU DRF240-24-2/HL
- 24 V
- 240 W power
- Input voltage range 85 to 264 V
- Connections (components): screw terminal
Technical specifications
- Input voltage range 85 to 264 VAC; Output Power 240 Watt; peak power (peak power) up to 360 W; output voltage range: 24.0 - 28.0 V; Ripple:< 240 mV; efficiency: 92,5/94% (100/200 VACin); idle power consumption< 0.5 Watt; convection cooled; electrical safety tested and certified to EN/UL/CSA 60950-1, UL-508, CE; EMC according to EN 55022-B, CISPR22-B;PSU type: SMPS; ambient temperature range of -25 °C to +70 °C; full output power up to 60°C; power derating from 60°C; increased Isolation input/output 3000 vac; dimensions (W x D x H): 49 x 115 x 123,4 mm
- Product type
Rail mounted PSU (DIN)
- Output voltage
24 V
- Input voltage
85 to 264 V
- Max. output current
10 A
- Output current (max.) - rounded
10 A
240 W
- Output type (power supply units)
Adjustable
- Output voltage (nominal)
24 V DC
- No. of outputs
1 x
- Connection
Screw terminal
- Dim
(W x H) 49 mm x 123 mm
- Weight
900 g
- Output voltage (max.)
28 V
- Output voltage (min.)
24 V
- Operating temperature (max.)
70 °C
- Max. operating temperature (derating)
60 °C
- Operating temperature (min.)
-25 °C
- Manufacturer part #
DRF240-24-1/HL
- Content
1 pc(s)
- PSU features
Surge protection
- Width
49 mm
- Height
123 mm
- Type
DRF240-24-1/HL
- Consumption (standby)
0.5 W
- Efficiency
94 %
- UKCA
yes
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 1390703 TDK-Lambda DRF240-24-1/HL Rail mounted PSU (DIN) Consumption (standby) 0.5 W 24 V DC 10 A 240 W No. of outputs:1 x Conte
User & Safety Instructions
User & Safety Instructions 1390703 TDK-Lambda DRF240-24-1/HL Rail mounted PSU (DIN) Consumption (standby) 0.5 W 24 V DC 10 A 240 W No. of outputs:1 x Conte
Conformity certificate
Conformity certificate 1390703 TDK-Lambda DRF240-24-1/HL Rail mounted PSU (DIN) Consumption (standby) 0.5 W 24 V DC 10 A 240 W No. of outputs:1 x Conte
Warranty Terms
Warranty Terms 1390703 TDK-Lambda DRF240-24-1/HL Rail mounted PSU (DIN) Consumption (standby) 0.5 W 24 V DC 10 A 240 W No. of outputs:1 x Conte
Description
Extremely compact DIN rail power supply for several application areas for simple snapping onto TS 35 mounting rails. Thanks to low idle power consumption and an excellent degree of efficiency, the device meets the ErP directive. Can be used worldwide because of the wide-range input of 85-264 V AC and extensive certification. Approvals for use of the device for explosion-protected or marine applications.
This text is machine translated.
This text is machine translated.
Features
- Surge protection on the input and output.
- Overcurrent protection; Short-circuit proof
- Idle fixed
- Output voltage of 24 up to 28 V adjustable via potentiometer as well as by means of control voltage
- LED signalling green = output voltage in order, red = device runs in peak load mode; potential-free relay contact 30VDC/1A, closed if output voltage is ok
- Connections: screw terminals on power input and power output, 8-pin connector for functions and signals
Hints
This product is a component power supply considered apparatus and is only to be installed by qualified persons within other equipment and must not be operated as a stand alone product.
This product is for sale to business to business customers and can be obtained via distribution channels.
It is not intended for sale to end users.
