TDK-Lambda GEN12.5-60/LN 19" bench PSU (adjustable voltage) 0 - 12.5 V DC 0 - 60 A 1 x RS232, RS485, IEE488.2 SCPI/GPIB,

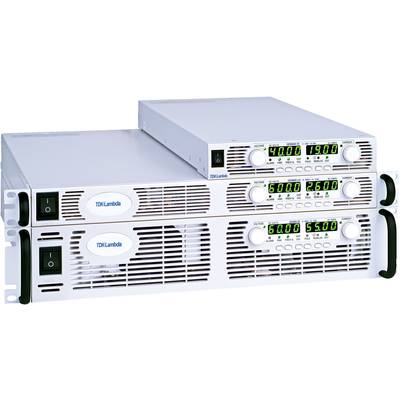

The 750 Watt Genesys is a powerful ultra-slim laboratory power supply. These devices have no air slots at the top and bottom and are thus actually with 1 HE.

Output voltages of up to 600 V and output currents up to 100 A (depending on model) can be set directly on the device or remotely via the built-in RS232/RS485 interface. But even via analog inputs can be programd all important functions (with control voltages 0-5 V/0-10V or external resistance) high-resolution 16-bit A/D and D/A-converter enable very precise settings and programming; the settings using the controls on the device (encoder) can be switched between coarse and fine adjustment.

Digital displays indicate the current values as well as various status information (including the Over Voltage Protection, Under Voltage Limit, address settings), and a monitor output provides corresponding analogue voltages (0-5V or 0-10V) for external monitoring. The device can naturally be operated as a constant voltage as well as a constant current source with automatic crossover between these operating modes. Several devices can be switched serially or in parallel. The genesys series is suitable for 19" rack mounting.
