TDK-Lambda I9C4W030A480V-NC3-R DC/DC converter Content 1 pc(s)

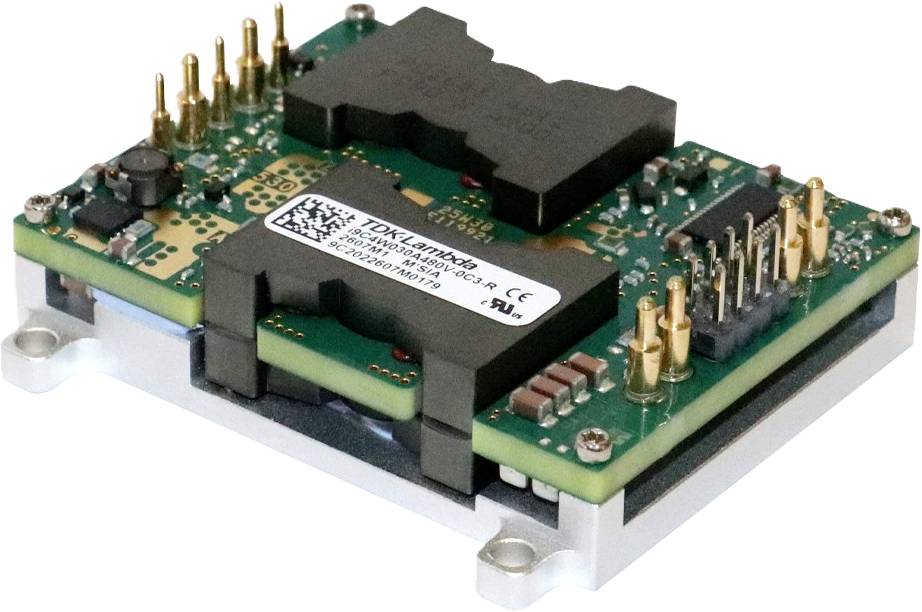

Small electronic circuit board module with gold pin headers and black connectors on a metal base, shown on a white background.

Small electronic circuit board module with gold pin headers and black connectors on a metal base, shown on a white background.

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

DC-DC Converter, Input: 9 - 80VDC, Output: 9V to 80V @ 30A, 1500.0W

High efficiency to reduce heat in your system.
Standard Quarter Brick Footprint.
Wide input voltage range.
Compact Size.
Adjustable Output Voltage.
Wide Operating Temperature range.
This text is machine translated.

Technical specifications

Product type: DC/DC converter

Type: I9C4W030A480V-NC3-R

Min. input voltage: 9.0 V DC

Input voltage (max.): 80.0 V DC

Operating temperature (min.): -40 °C

Operating temperature (max.): 117 °C

Output voltage (max.): 80.0 V DC

Output voltage (min.): 9.0 V DC

Content: 1 pc(s)

Output rating: 1500 W

Efficiency: 99 %

Documents & Downloads

Datasheet

Datasheet 3843862 TDK-Lambda I9C4W030A480V-NC3-R DC/DC converter Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3843862 TDK-Lambda I9C4W030A480V-NC3-R DC/DC converter Content 1 pc(s)
