TDK-Lambda ZPSA60-24 Industrial PSU 24 V DC 2.5 A 60 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 34.45 / piece)
€ 34.45
plus VAT.
Only 4 Piece(s) available
Highlights & Details

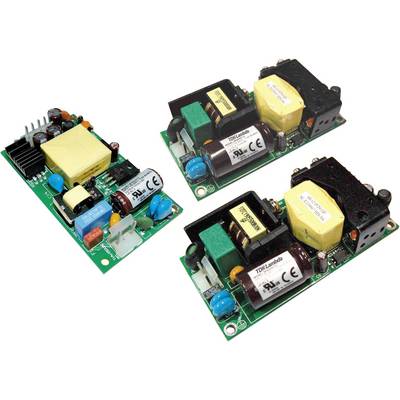

TDK-Lambda Unit type power supply (Industry Power Supply) ZPSA-60-24
- 24 V/DC / 2,5 A
- 60 W Power
- Wide range input 90 - 264 V/AC, 120 - 370 V/DC
- Temperature range 0 to +70 °C
Technical specifications
- Ripple and noise: <1%;Efficiency: 86%
- Product type
Industrial PSU
- Input voltage (max.)
264 V AC
- Max. output current
2.5 A
- Output current (max.) - rounded
2.5 A
- Min. input voltage
90 V AC
- Dim
(L x W x H) 101.6 x 50.8 x 27.1 mm
- Output voltage (max.)
24 V DC
60 W
- No. of outputs
1 x
- Output current 1
2.5 A
- Type
open
- Weight
130 g
- Width
50.8 mm
- Height
27.1 mm
- Length
101.6 mm
- Type
ZPSA60-24
60 W
- Input voltage
90 V/AC - 264 V/AC or 120 V/DC - 370 V/DC
- Max. temperature
50 °C
- Min. temperature
0 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1082900 TDK-Lambda ZPSA60-24 Industrial PSU 24 V DC 2.5 A 60 W
User & Safety Instructions
User & Safety Instructions 1082900 TDK-Lambda ZPSA60-24 Industrial PSU 24 V DC 2.5 A 60 W
Information
Information 1082900 TDK-Lambda ZPSA60-24 Industrial PSU 24 V DC 2.5 A 60 W
Warranty Terms
Warranty Terms 1082900 TDK-Lambda ZPSA60-24 Industrial PSU 24 V DC 2.5 A 60 W
Description
Compact, universal Power Supply for 24/7 use with low profile, special output voltages (5V, 9V, 15V, 28V, 30V), Peak Power for 30 seconds.
Features
- Over current protection
- Over voltage protection
- Safety and EMC according to CE, EN/UL/CSA 60950-1, EN 55022-B, FCC-B
- Type: switch mode
- Connectors: Molex terminal
Hints
This product is a component power supply considered apparatus and is only to be installed by qualified persons within other equipment and must not be operated as a stand alone product.
This product is for sale to business to business customers and can be obtained via distribution channels.
It is not intended for sale to end users.
