TDK MLZ2012M1R0HT000 SMD / SMT-Induktivitäten Inductor shielded SMD 1 µH 0.1 Ω 700 mA 1 pc(s) Tape on Full reel
Part number:
Item no:
Packaging type
Tape on Full reel
Product type
Inductor
Type
SMD
Inductance (L)
1 µH
Resistance
0.1 Ω
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
10
-
€ 0.08
30
12% = € 0.01
€ 0.07
50
25% = € 0.02
€ 0.06
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 10
Tape on Full reel
Piece(s) (Content: )
Piece(s) (Content: )
Total (€ 0.08 / piece)
€ 0.80
plus VAT.
14-day return policy included
Highlights & Details

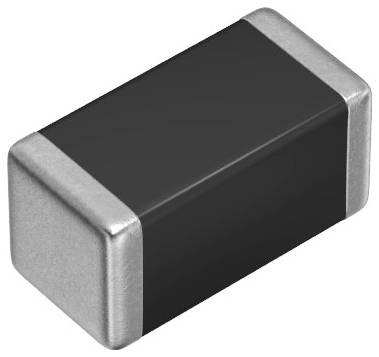

TDK multi-layer ferrite inductor MLZ2012M1R0HT000
- The MLZ series includes inductances for decoupling circuits with premium DC overlay properties and low DC resistance.
- They are compatible with broadband noise, from low to high frequencies.
- Type H products have a rated current equal to that of wound coils.
- Type W products are the new standard and feature high current and low resistance.
- Type L products have a resistance up to 60% lower than type W products
- Operating temperature range: -55 °C to +125 °C (including self-heating)
- This text is machine translated.
Our service for you
Technical specifications
- Packaging type
Tape on Full reel
- Product type
Inductor
- Features
shielded
- Type
SMD
- Inductance (L)
1 µH
- Resonance
80 MHz
- Test frequency
2 MHz
- Sample rate
2 MHz
- Tolerance ±
20 %
- Resistance
0.1 Ω
- Nominal current
700 mA
- Material
Duplex steel
- Length
2 mm
- Width
1.25 mm
- Height
1.25 mm
- Min. temperature
-55 °C
- Max. temperature
125 °C
- Weight
0.014 g
- Industrial packaging
Yes
- Content
1 pc(s)
- Dim
(L x W x H) 2 x 1.25 x 1.25 mm
- RoHS-compliant
Yes
- Type
SMD / SMT-Induktivitäten
