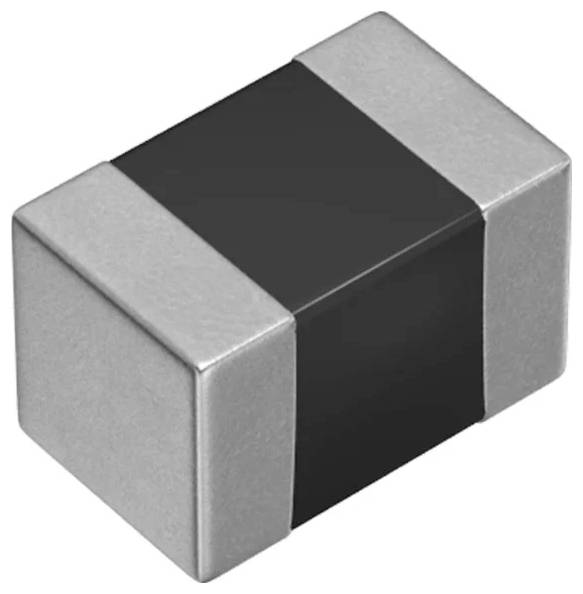

TDK MPZ2012S102AT000 Chip Beads Ferrite bead SMD 0805 0.15 Ω 1000 Ω 1.5 A 1 pc(s) Tape on Mini reel
Part number:
Item no:
Packaging type
Tape on Mini reel
Product type
Ferrite bead
Type
SMD
Resistance
0.15 Ω
Max. temperature
125 °C
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
10
-
€ 0.07
30
14% = € 0.01
€ 0.06
50
29% = € 0.02
€ 0.05
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 10
Total (€ 0.07 / piece)
€ 0.70
plus VAT.
14-day return policy included
Highlights & Details
Chip plates for power lines MPZ-series MPZ2012S102AT000
- Noise suppression solution for power lines.
- In comparison with the MMZ-series it offers a low DC-resistance for high currents and is optimum for low power consumption.
- Different frequency characteristics and two materials with different properties enable the suppression of disturbances of all kinds, from standard signals to high-speed signals.
- It is also suitable for signal lines that require a low DC resistance.
- Operating temperature range -55°C to +125°C.
- Noise reduction for mobile devices such as smartphones and tablets, as well as various modules.
- Noise suppression for PCs and recording devices, home appliances such as set-top boxes, Smart grids and industrial plants.
- This text is machine translated.
Technical specifications
- Packaging type
Tape on Mini reel
- Product type
Ferrite bead
- Type
SMD
- Type
0805
- Impedance at 100 MHz
1000 Ω
- Frequency
100 MHz
- Test frequency
100 MHz
- Sample rate
100 MHz
- Tolerance ±
25 %
- Resistance
0.15 Ω
- Nominal current
1.5 A
- Material
Duplex steel
- Length
2 mm
- Width
1.25 mm
- Height
0.85 mm
- Min. temperature
-55 °C
- Max. temperature
125 °C
- Weight
0.008 g
- Industrial packaging
Yes
- Content
1 pc(s)
- Dim
(L x W x H) 2 x 1.25 x 0.85 mm
- RoHS-compliant
Yes
- Type
Chip Beads
- UKCA
yes
