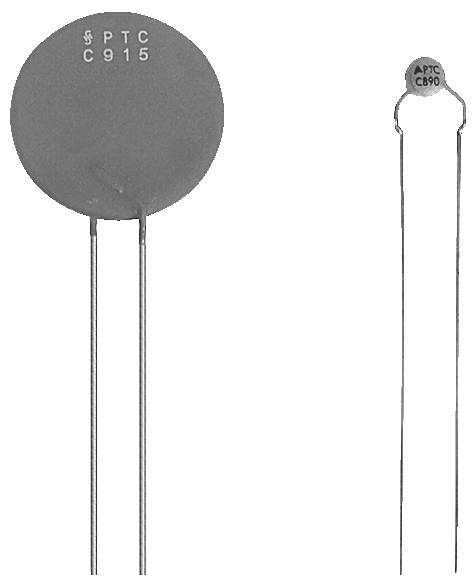

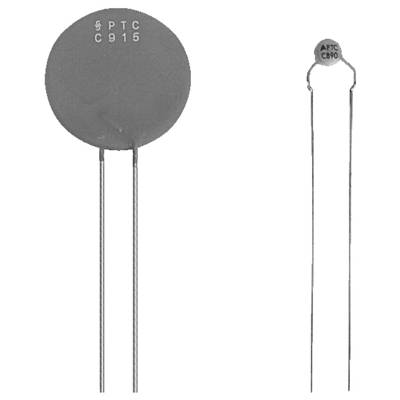

TDK PTC thermistor Radial lead 15 Ω 1 pc(s)
Part number:
Item no:
Product type
PTC thermistor
Type
Radial lead
Resistance
15 Ω
Tolerance ±
25 %
Content
1 pc(s)
Datasheet (PDF)
Highlights & Details
TDK electronics PTC-resistance 265V 80° 15R 1,5A
Our service for you
Technical specifications
- Ceramic PTC thermistors protect electrical consumers such as motors, transformers, etc., and electronic circuits (line card)
- ESD Packaging: No ESD
- Series B598
- Delivery form: Loose
- Diameter, Resistance element 11 mm
- Diameter, connection wire 0.6 mm
- Resistance tolerance: ±25 %
- Rated temperature 80°C.
- Max. OPERATING VOLTAGE (DC) 265 V DC
- Max. OPERATING VOLTAGE (AC) 265 V AC
- Nominal voltage: 230 V
- Max. permissible switching current at Umax 1.5 A
- Switching current: 180 mA
- Residual current at Umax 6 mA
- Approvals UL
- Product type
PTC thermistor
- Type
Radial lead
- Resistance
15 Ω
- Tolerance ±
25 %
- Manufacturer part #
B59860C0080A070
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
B59860C0080A070
- Height
14.5 mm
- Mounting type
PCB mount
- Nominal current
90 mA
- CS
5 mm
- Operating temperature (max.)
125 °C
- Operating temperature (min.)
-40 °C
Documents & Downloads
Datasheet
Datasheet 3465091 TDK PTC thermistor Radial lead 15 Ω 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3465091 TDK PTC thermistor Radial lead 15 Ω 1 pc(s)
Description
PTC thermistor B59 25% RM5.08
This text is machine translated.
This text is machine translated.
Features
- PTC resistor
- In contrast to plastic-based PTC's, the ceramic PTC thermistor reverts to its initial resistance value even after often cools down.
- They respond to impermissibly high currents and protect when predefined temperature limits are exceeded; the power loss absorbed by the entire circuit is limited by increasing the resistance and reducing the current to a harmless residual value.
- The PTC thermistor is not replaced, but performs its protection function immediately after a short cooling down time.
- Cold-conducting disc, sheathed
- Pinhole gap 5mm
