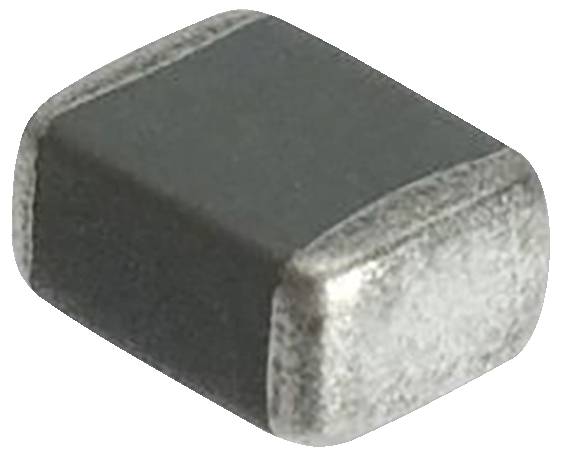

TDK PTC thermistor SMD 1210 27 Ω 1 pc(s)
Part number:
Item no:
Product type
PTC thermistor
Type
SMD
Resistance
27 Ω
Tolerance ±
25 %
Content
1 pc(s)
Datasheet (PDF)
Highlights & Details
TDK electronics PTC SMD 1210 30V 110° 27R 0,5A
Our service for you
Technical specifications
- Application: For overcurrent and short circuit protection
- Series B59606
- Design 1210
- Delivery type: Belt
- Resistance tolerance: ±25 %
- Rated temperature 110°C.
- Max. OPERATING VOLTAGE (DC) 30 V DC
- Max. OPERATING VOLTAGE (AC) 30 V AC
- Nominal voltage: 24 V
- Max. permissible switching current at Umax 0.5 A
- Switching current: 180 mA
- Residual current at Umax 90 mA
- Product type
PTC thermistor
- Type
SMD
- Type
1210
- Resistance
27 Ω
- Tolerance ±
25 %
- Manufacturer part #
B59606A0110A062
- Content
1 pc(s)
- Dim
(L x W x H) 3.2 x 2.5 x 1.6 mm
- RoHS-compliant
Yes
- Type
B59606A0110A062
- Height
1.6 mm
- Length
3.2 mm
- Width
2.5 mm
- Nominal current
90 mA
- Operating temperature (max.)
125 °C
- Operating temperature (min.)
-40 °C
Documents & Downloads
Datasheet
Datasheet 3465090 TDK PTC thermistor SMD 1210 27 Ω 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3465090 TDK PTC thermistor SMD 1210 27 Ω 1 pc(s)
Description
TDK B596 PTC series
This text is machine translated.
This text is machine translated.
Features
- • PTC resistor
- • Thermistor chip with lead-free tin plated connections
- • Small size: 2.5x3.2x1.6 mm
- • Short response times
- • Only suitable for reflow soldering
- • Suitable for automatic placement
