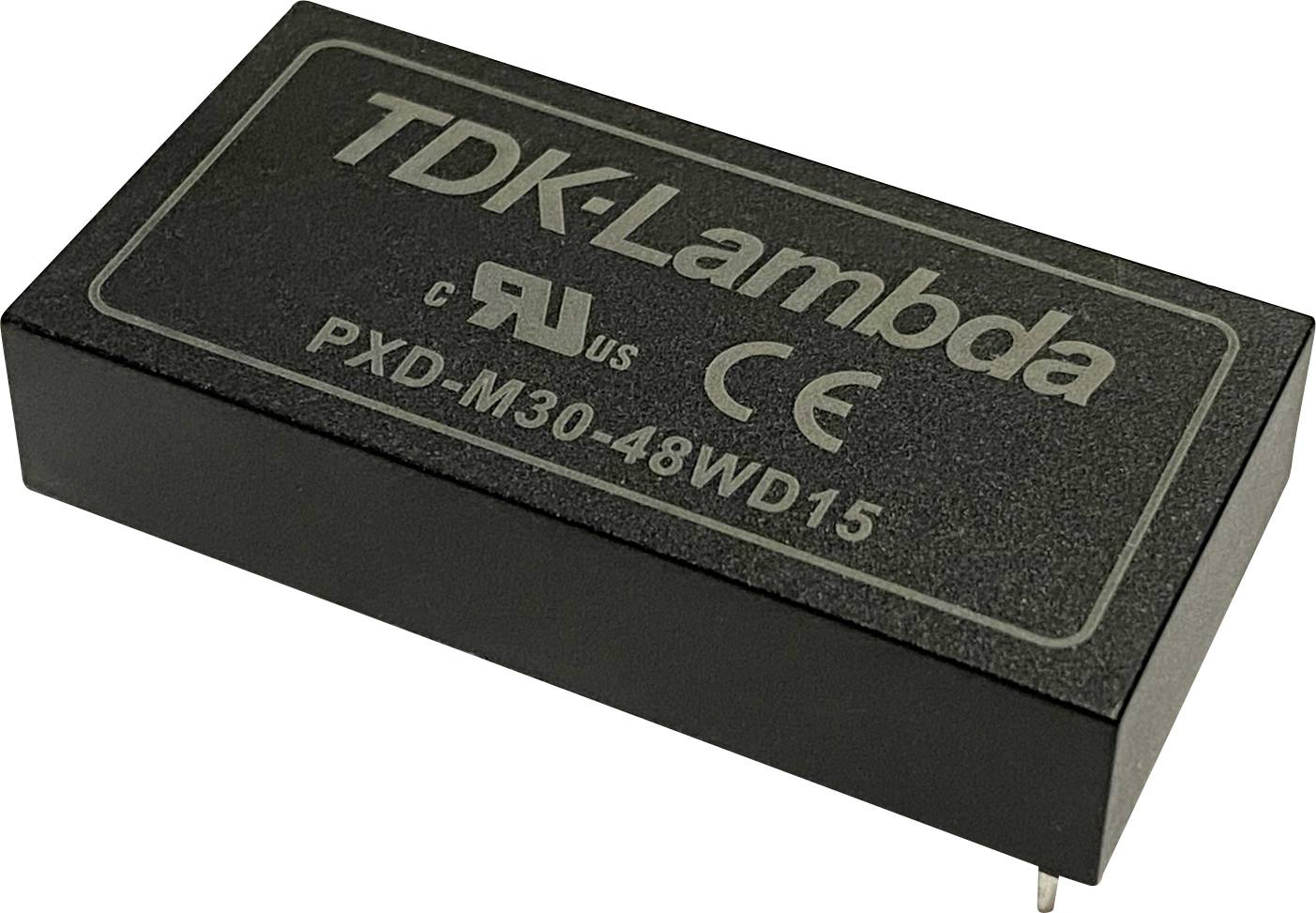

TDK PXD-M30-48WD15 DC/DC converter 5 V DC 12 V DC 1 A 30 W No. of outputs: 2 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
DC-DC, PCB MOUNTING, INPUT 9-36VDC, 24V 1.25A, 30W
- Wide 4:1 input voltage range;Standard 2” x 1” format;certified according to IEC 60601-1 and IEC 62368-1;2x MOPP insulation;low idle power consumption
Technical specifications
- Product type
DC/DC converter
- Type
PXD-M30-48WD15
- Nominal voltage
5 V DC
- Min. input voltage
18 V DC
- Input voltage (max.)
75 V DC
- No. of outputs
2 x
- Output voltages
12 V DC
- Max. output current
1 A
- Output current (max.) - rounded
1 A
30 W
- Operating temperature (min.)
-55 °C
- Operating temperature (max.)
+125 °C
- Dim
(L x W x H) 50.8 x 25.4 x 10.2 mm
- Height
10.2 mm
- Length
50.8 mm
- Width
25.4 mm
- RoHS-compliant
Yes
- Output voltage (max.)
15 V DC
- Weight
32 g
- Content
1 pc(s)
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2481365 TDK PXD-M30-48WD15 DC/DC converter 5 V DC 12 V DC 1 A 30 W No. of outputs: 2 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2481365 TDK PXD-M30-48WD15 DC/DC converter 5 V DC 12 V DC 1 A 30 W No. of outputs: 2 x Content 1 pc(s)
Warranty Terms
Warranty Terms 2481365 TDK PXD-M30-48WD15 DC/DC converter 5 V DC 12 V DC 1 A 30 W No. of outputs: 2 x Content 1 pc(s)
Description
The PXD-M series is a 2x1" DC-DC converter with IEC 60601-1 medical device approvals and IEC 62368-1 for audio/video, information and communication technology. Equipped with an isolation voltage primary/secondary of 5000Vac, the series offers 4:1 wide-range inputs with 9 to 36VDC or 18 to 75Vdc and voltages of 5, 12, 15, 24, +/- 5, +/- 12 and +/- 15Vdc.
