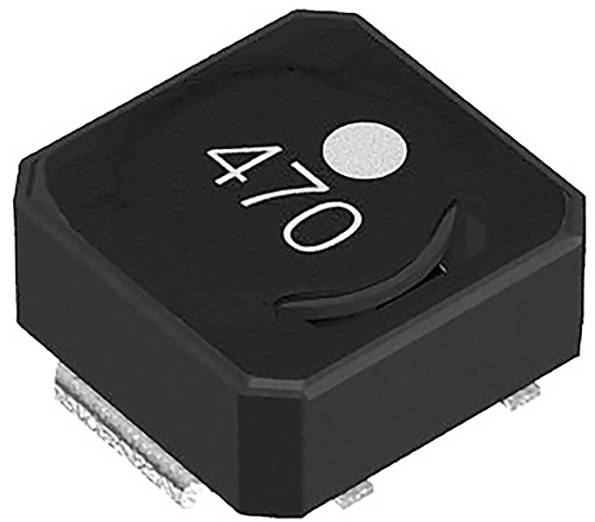

TDK VLCF5020T-220MR75-1 SMD / SMT-Induktivitäten Inductor shielded 22 µH 413 mΩ 1 A 1 pc(s) Tape on Full reel
Part number:
Item no:
Packaging type
Tape on Full reel
Product type
Inductor
Inductance (L)
22 µH
Resistance
413 mΩ
Max. temperature
105 °C
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 0.58
10
9% = € 0.05
€ 0.53
25
12% = € 0.07
€ 0.51
Volume discounts vary depending on the seller
You save € 0.00
Number
Tape on Full reel
Piece(s) (Content: )
Piece(s) (Content: )
Total (€ 0.58 / piece)
€ 0.58
plus VAT.
14-day return policy included
Highlights & Details
TDK inductance VLCF5020T-220MR75-1
- Magnetically shielded inductivity for power circuits.
- Flat design
- Magnetically shielded version with ferrite core.
- Operating temperature range: - 40 to +105 °C (incl. self-heating)
- Ferrite winding
- VCF series
- This text is machine translated.
Technical specifications
- Packaging type
Tape on Full reel
- Product type
Inductor
- Features
shielded
- Inductance (L)
22 µH
- Test frequency
100 kHz
- Sample rate
100 kHz
- Tolerance ±
20 %
- Resistance
413 mΩ
- Nominal current
1 A
- Material
Duplex steel
- Length
5 mm
- Width
5 mm
- Height
2 mm
- Min. temperature
-40 °C
- Max. temperature
105 °C
- Weight
0.18 g
- Industrial packaging
Yes
- Content
1 pc(s)
- Dim
(L x W x H) 5 x 5 x 2 mm
- RoHS-compliant
Yes
- Type
SMD / SMT-Induktivitäten
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3555327 TDK VLCF5020T-220MR75-1 SMD / SMT-Induktivitäten Inductor shielded 22 µH 413 mΩ 1 A 1 pc(s) Tape on Full reel
User & Safety Instructions
User & Safety Instructions 3555327 TDK VLCF5020T-220MR75-1 SMD / SMT-Induktivitäten Inductor shielded 22 µH 413 mΩ 1 A 1 pc(s) Tape on Full reel
Description
Features
- Wire wound
- Magnetic shielding
- Ferrite core
