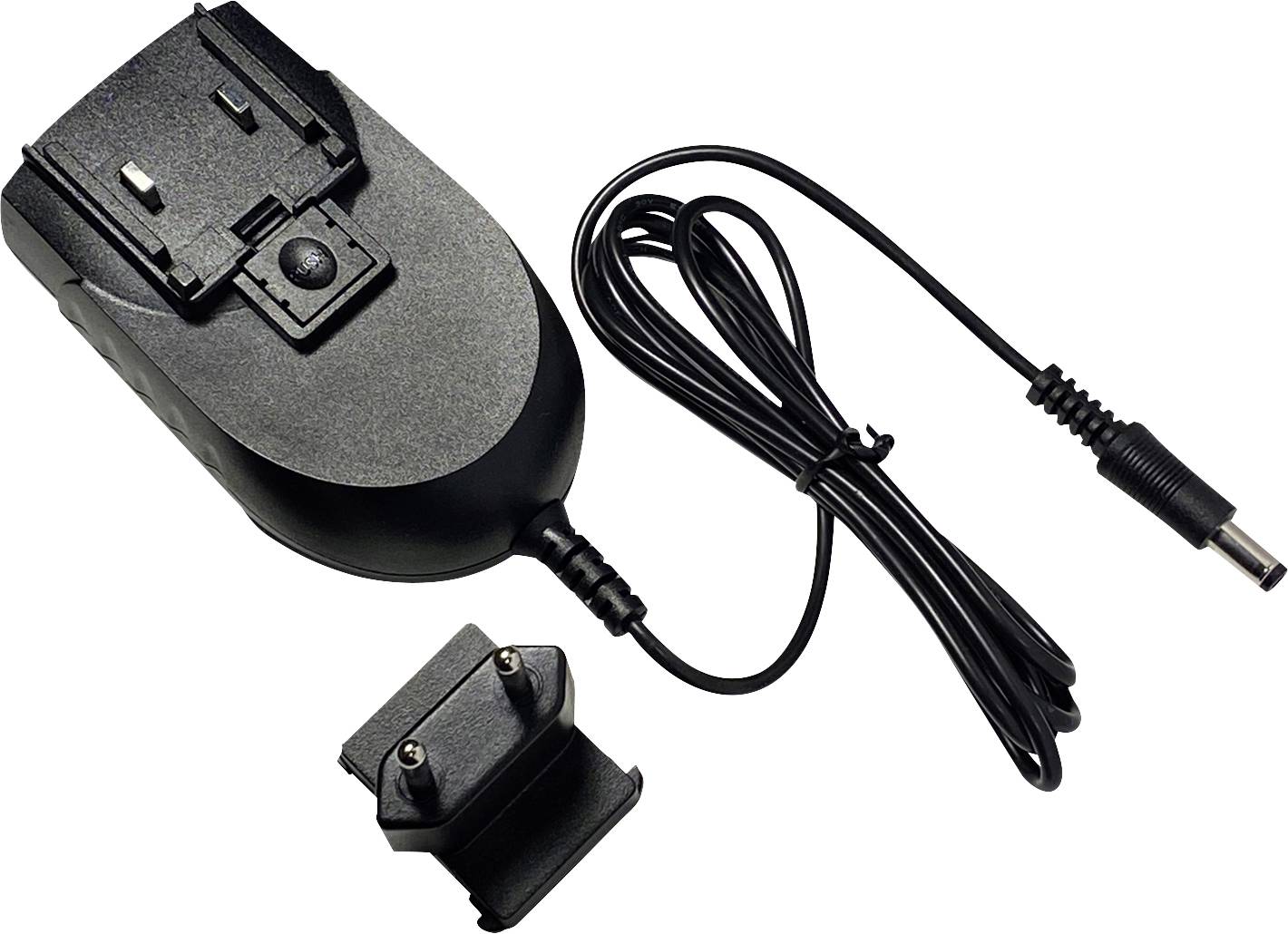

TDK WMM30CN150-00E Mains PSU (fixed voltage) 15 V 2 A 30 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
25 to 30W medical plug-in power supply with EU plug
- ERP, CEC, and EISA compliant modelsAC wide range inputCountry-specific input plugsMedical certificationsIsolation input/ 4kV (2MOPP)Alternative plugs and cable combinations availableII protection ratingInput voltage range of 90 -264Vac
Technical specifications
- Product type
Mains PSU (fixed voltage)
- Max. output current
2 A
- Output voltage
15 V
- Output current (max.) - rounded
2 A
30 W
- Dim
(L x W x H) 96.7 x 58 x 43.25 mm
- Input voltage (max.)
264 V AC
- Min. input voltage
80 V AC
- Weight
200 g
- Width
58 mm
- Height
43.25 mm
- Length
96.7 mm
- Type
WMM30CN150-00E
- Operating temperature (max.)
+70 °C
- Operating temperature (min.)
-25 °C
- Output voltages
3 V DC
Documents & Downloads
Datasheet
Datasheet 2481390 TDK WMM30CN150-00E Mains PSU (fixed voltage) 15 V 2 A 30 W
User & Safety Instructions
User & Safety Instructions 2481390 TDK WMM30CN150-00E Mains PSU (fixed voltage) 15 V 2 A 30 W
Warranty Terms
Warranty Terms 2481390 TDK WMM30CN150-00E Mains PSU (fixed voltage) 15 V 2 A 30 W
Description
The medically certified power supplies of the WMM-series are equipped with a robust plastic housing and have a power of 25 to 30 W at voltages of 5 V to 24 V. The devices can be used worldwide through exchangeable AC-plugs.With a power consumption of only 75 mW in idle mode and high average efficiency, the devices comply with the ERP guidelines and the DoE VI standards. The WMM power supplies have an AC input of protection class II (no protective conductor connection) and are thus also suitable for applications in clinical and domestic health care.
This text is machine translated.
