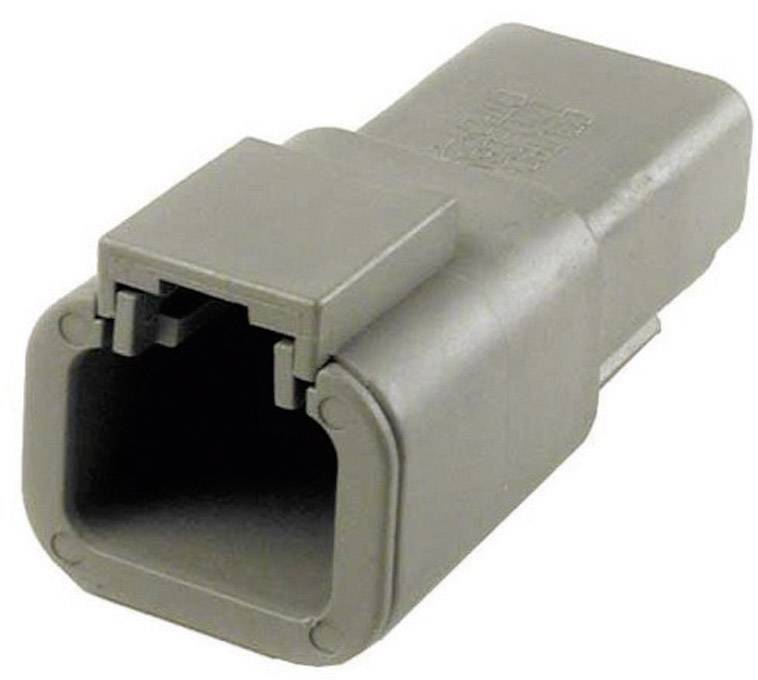

TE Connectivity 19543
EAN:
Part number:
Item no:
Product type
Bullet connector
Connector type
Plug, straight
Total no. of pins
2
Connection
Crimp
Content
1 pc(s)
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 3.77
5
6% = € 0.24
€ 3.53
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 3.77 / piece)
€ 3.77
plus VAT.
14-day return policy included
Highlights & Details
TE Connectivity 19543
Our service for you
Technical specifications
- Type
19543
- Product type
Bullet connector
- Connector type
Plug, straight
- Total no. of pins
2
- Connection
Crimp
- Factory colour
Black
- Content
1 pc(s)
- Max. temperature
+70 °C
- Nominal current
10 A
- Min. temperature
-20 °C
- Nominal current - rounded value
10 A
- Nominal voltage
277 V
- Cable Ø (max.)
3.68 mm
- Cable Ø up to
1.35 mm
- Case material
Thermoplastic material
20 - 14
- Connection angle
180°
- Manufacturer part #
19543
- Cable Ø range
1.35 - 3.68 mm
- Number of pins
2
- max. cross section
3.3 mm²
- Cross-section range
3.3 mm² (max)
- RoHS-compliant
Yes
- Series
DTP
Documents & Downloads
Datasheet
Datasheet 739586 TE Connectivity 19543
Information
Information 739586 TE Connectivity 19543
Description
The DTP Series extends the known DT and DTM series with all your positive qualities. DTP connectors are an effective possibility high current strengths, for example, for the power supply.
This text is machine translated.
This text is machine translated.
Hints
Contacts and fuse wedge not included in the delivery.
