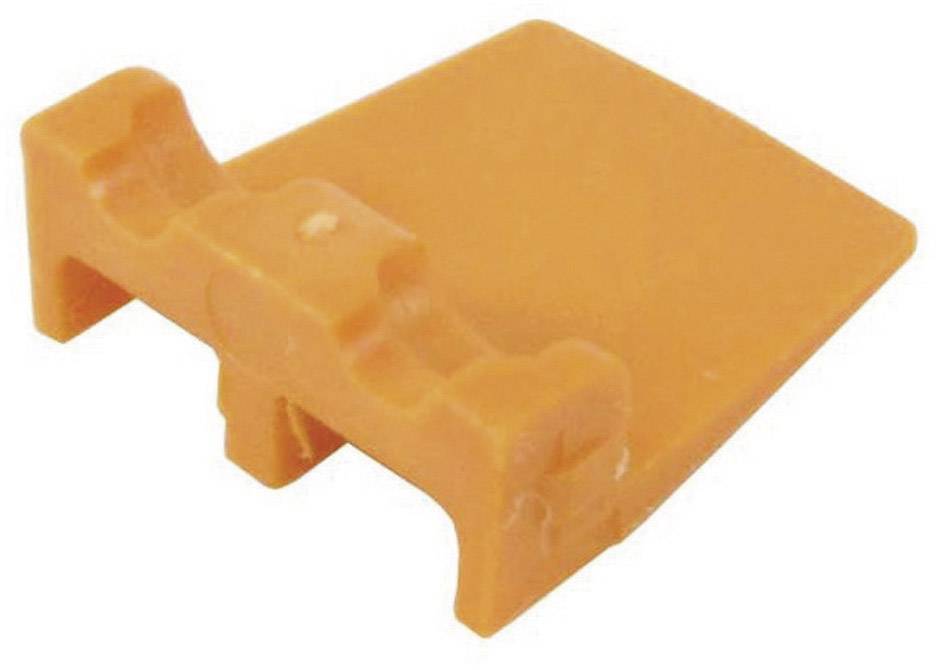

TE Connectivity 19544
EAN:
Part number:
Item no:
Product type
Bullet connector wedge
Connector type
Plug
Total no. of pins
2
Connection
Plug
Content
1 pc(s)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
10
-
€ 0.31
30
6% = € 0.02
€ 0.29
50
13% = € 0.04
€ 0.27
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 10
Total (€ 0.31 / piece)
€ 3.10
plus VAT.
14-day return policy included
Highlights & Details
TE Connectivity 19544
Our service for you
Technical specifications
- Type
19544
- Product type
Bullet connector wedge
- Connector type
Plug
- Total no. of pins
2
- Connection
Plug
- Content
1 pc(s)
- Max. temperature
+70 °C
- Nominal current
3 A
- Min. temperature
-20 °C
- Nominal current - rounded value
3 A
- Nominal voltage
277 V
- Cable Ø (max.)
3.68 mm
- Cable Ø up to
1.35 mm
- Case material
Thermoplastic material
20 - 14
- Connection angle
180°
- No. of contact sizes
2
- Manufacturer part #
19544
- Cable Ø range
1.35 - 3.68 mm
- Number of pins
2
- max. cross section
3.3 mm²
- Cross-section range
3.3 mm² (max)
- RoHS-compliant
Yes
- Series
DTP
- Packaging type
Piece
Description
The DTP Series extends the known DT and DTM series with all your positive qualities. DTP connectors are an effective possibility high current strengths, for example, for the power supply.
This text is machine translated.
This text is machine translated.
Hints
The fuse wedge is used to secure the contacts and is simply plugged into the housing after the placement of contacts.
