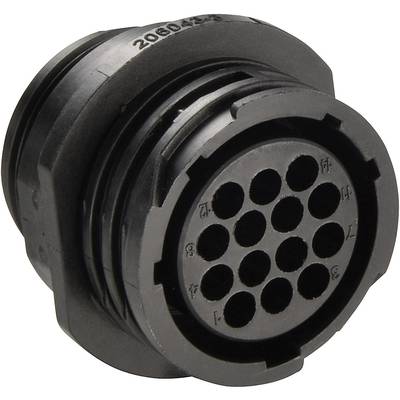

TE Connectivity 206043-3 CPC - Inverted Socket Housing, Free-hanging Nominal current (details): See data sheet Pins: 14
EAN:
Part number:
Item no:
Product type
Bullet connector
Connector type
Socket, straight
Total no. of pins
14
Connection
Crimp
Content
1 pc(s)
Datasheet (PDF)
18 Piece(s)
Sales and shipping:
Number
Total (€ 5.87 / piece)
€
Highlights & Details
TE Connectivity 206043-3 CPC - Inverted Socket Housing, Free-hanging Nominal current (details): See data sheet Pins: 14
Technical specifications
- Type
206043-3
- Product type
Bullet connector
- Connector type
Socket, straight
- Total no. of pins
14
- Connection
Crimp
- Factory colour
Black
- Content
1 pc(s)
- Max. temperature
+80 °C
- Min. temperature
-40 °C
- Nominal voltage
600 V
- Case material
Thermoplastic UL94V-1
- Connection angle
180°
- Manufacturer part #
206043-3
- Contact size
16
- Number of pins
14
- RoHS-compliant
Yes
- Series
CPC
- Material (details)
Polyester (Ul94 V-0)
- Nominal voltage (details)
600 V AC
- Nominal current (details)
See data sheet
- Pins
14
- Connection
-
- Temperature range
-55 - +125 °C
Documents & Downloads
Datasheet
Datasheet 749691 TE Connectivity 206043-3 CPC - Inverted Socket Housing, Free-hanging Nominal current (details): See data sheet Pins: 14
Information
Information 749691 TE Connectivity 206043-3 CPC - Inverted Socket Housing, Free-hanging Nominal current (details): See data sheet Pins: 14
Information 749691 TE Connectivity 206043-3 CPC - Inverted Socket Housing, Free-hanging Nominal current (details): See data sheet Pins: 14
Description
Circular connectors of the series CPC (Circular plastics Connector) are well-known in the entire industry and particularly used with rough environmental conditions.
Scope of delivery
- Without contact
