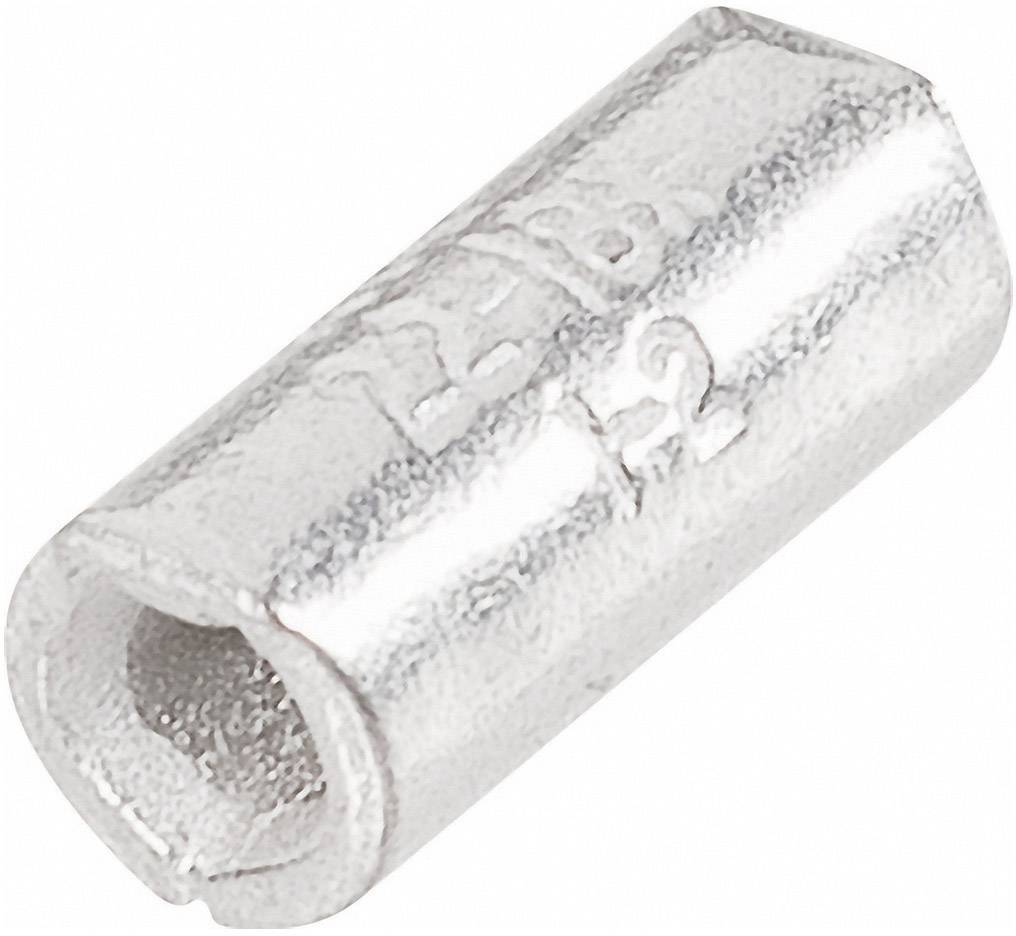

Image similar
TE Connectivity 32151 Butt joint 2.70 mm² 6.60 mm² Not insulated Metal 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Minimum order quantity: 5
Total (€ 0.50 / piece)
€
Technical specifications
- In accordance with MIL-T-10727
- Factory colour
Metal
- Contact material
Copper silver plated
- Manufacturer part #
32151
- Type
SOLISTRAND
- AWG max.
10
- AWG (min.)
12
- max. cross section
6.60 mm²
- Min. cross section
2.70 mm²
- Content
1 pc(s)
- Dim
- Length
14.35 mm
- Cross-section range
2.70 - 6.60 mm²
- Inside diameter
3.28 mm
- Insulation type
Not insulated
- Outside Ø
5.74 mm
- Wall thickness (details)
0.99 mm
12 - 10
- RoHS-compliant
Yes
- Product type
Butt joint
Documents & Downloads
Datasheet
Datasheet 808297 TE Connectivity 32151 Butt joint 2.70 mm² 6.60 mm² Not insulated Metal 1 pc(s)
Information
Information 808297 TE Connectivity 32151 Butt joint 2.70 mm² 6.60 mm² Not insulated Metal 1 pc(s)
Description
The proven W-crimp in connection with a via the processing tool precisely controlled pressure during the crimping process allows the use of a short crimp range. This special feature makes it possible to use the solistrand connector also there where the space is not optimal. The solistrand cable lugs are made of highly conductive copper and to improve the corrosion resistance electrolytically tin-plated. The full circumference crimping area, on the inside of mehrfaxch-ribbed and ensures a maximum electrical contact as well as a high tensile strength of the finished connection. The tapered sleeve form allows the conductor conical.
This text is machine translated.
