Buy TE Connectivity 66566-7 Bullet connector single contact Pin Total number of pins: 1 Series (round connectors): CPC 1 pc(

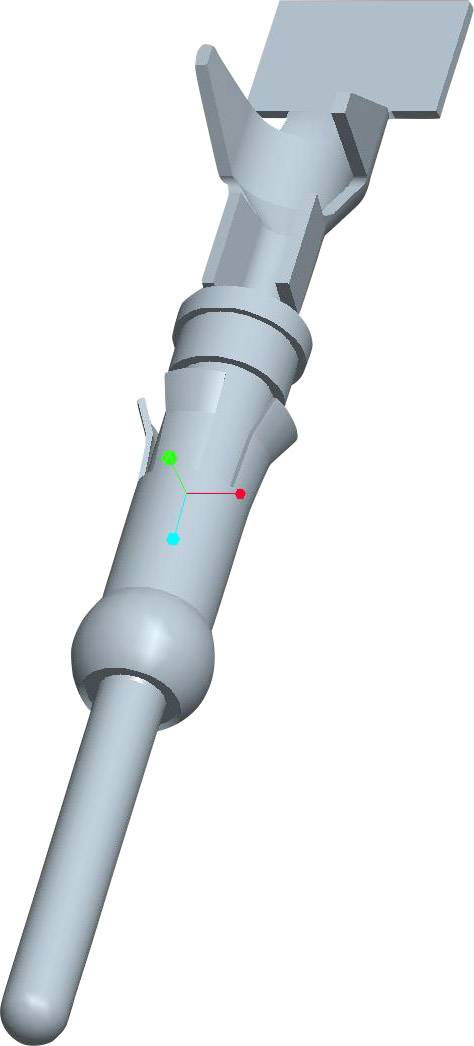

A grey, technical device with a lever. It has a three-dimensional coordinate system mapped on its surface.

Image similar

Product type

Bullet connector single contact

Connector type

Total no. of pins

Connection

Crimp

Content

1 pc(s)

Datasheet (PDF)

Fast track dispatch on Wed, 23 Sep

73 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Minimum order quantity: 5

Total (€ 0.80 / piece)

€ 4.00

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

CPC pin contact

Our service for you

Technical specifications

Type: 66566-7

Product type: Bullet connector single contact

Connector type: Pin

Total no. of pins: 1

Connection: Crimp

Content: 1 pc(s)

Max. temperature: +85 °C

Nominal current: 3 A

Min. temperature: -25 °C

Nominal current - rounded value: 3 A

Nominal voltage: 600 V

Contact material: Brass tin plated

: 24 - 20

Connection angle: 180°

Manufacturer part #: 66566-7

Number of pins: 1

RoHS-compliant: Yes

Series: CPC

Material (details): Polyester (Ul94 V-0)

Nominal voltage (details): 600 V AC

Nominal current (details): See data sheet

Temperature range: -55 - +125 °C
