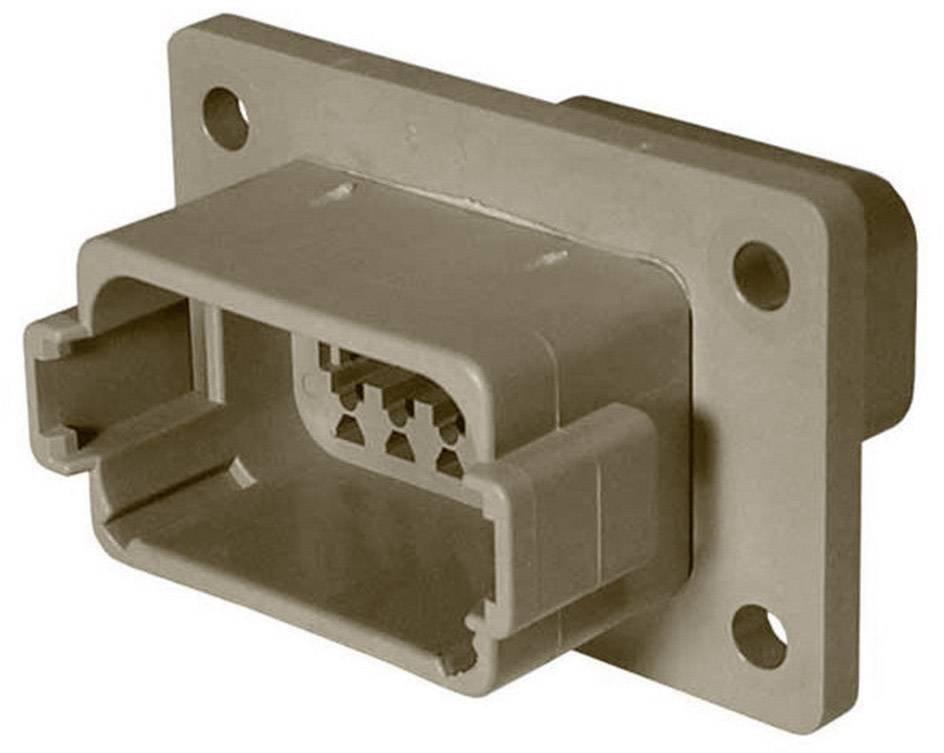

TE Connectivity DT04-12PA-L012
EAN:
Part number:
Item no:
Product type
Bullet connector
Connector type
Socket, built-in
Total no. of pins
12
Connection
Crimp
Content
1 pc(s)
Datasheet (PDF)
Number
Total (€ 7.55 / piece)
€ 7.55
plus VAT.
14-day return policy included
Highlights & Details
TE Connectivity DT04-12PA-L012
Our service for you
Technical specifications
- Type
DT04-12PA-L012
- Product type
Bullet connector
- Connector type
Socket, built-in
- Total no. of pins
12
- Connection
Crimp
- Content
1 pc(s)
- Max. temperature
+85 °C
- Nominal current
10 A
- Min. temperature
-40 °C
- Nominal current - rounded value
10 A
- Nominal voltage
250 V
- Cable Ø (max.)
3.68 mm
- Cable Ø up to
1.35 mm
- Case material
Thermoplastic material
20 - 14
- Connection angle
180°
- Manufacturer part #
DT04-12PA-L012
- Cable Ø range
1.35 - 3.68 mm
- Number of pins
12
- max. cross section
2 mm²
- Cross-section range
2 mm² (max)
- RoHS-compliant
Yes
IP68
- Series
DT
Documents & Downloads
Datasheet
Datasheet 568329 TE Connectivity DT04-12PA-L012
User & Safety Instructions
User & Safety Instructions 568329 TE Connectivity DT04-12PA-L012
Description
Connector consists of housing, contacts and fuse wedge.
