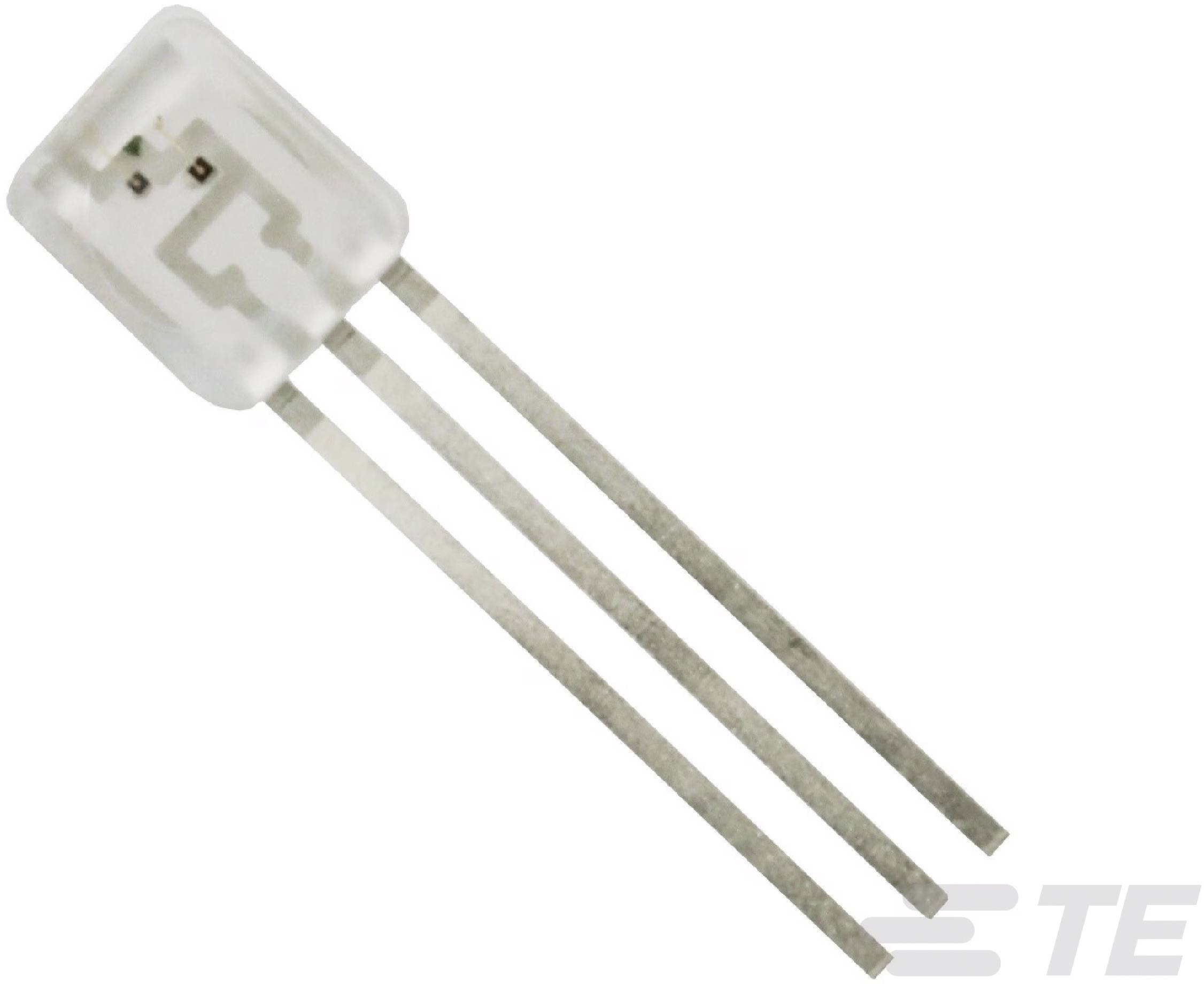

Image similar
TE Connectivity IR emitter 660 nm, 940 nm
EAN:
Part number:
Item no:
Product type
IR emitter
Wavelength
660 nm
940 nm
Min. temperature
-20 °C
Max. temperature
80 °C
Dim
(L x W x H) 5.1 x 1.9 x 4.4 mm
Datasheet (PDF)
Highlights & Details
TE CONNECTIVITY 11032254-00
Our service for you
Technical specifications
- Product type
IR emitter
- Wavelength
660 nm
940 nm
- Min. temperature
-20 °C
- Max. temperature
80 °C
- Dim
(L x W x H) 5.1 x 1.9 x 4.4 mm
- Height
4.4 mm
- Length
5.1 mm
- Width
1.9 mm
- RoHS-compliant
Yes
- Manufacturer
TE Connectivity
- Depth
4.4 mm
Documents & Downloads
Datasheet
Datasheet 3367147 TE Connectivity IR emitter 660 nm, 940 nm
Datasheet 3367147 TE Connectivity IR emitter 660 nm, 940 nm
User & Safety Instructions
User & Safety Instructions 3367147 TE Connectivity IR emitter 660 nm, 940 nm
Description
Infrared (IR) Emitter 940nm 1.2V Radial
Hints
Unless LED chips come with a built-in current limiter, they need to be protected by a current-limitung resistor or constant current source. Infrared light wavelengths are invisible to the human eye.
