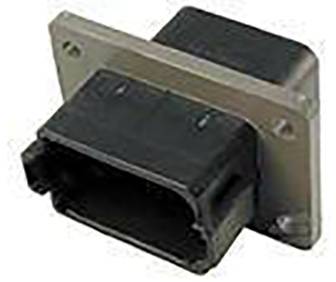

TE Connectivity Pin housing cable DT Total number of pins 12 DT04-12PB-L012 1 pc(s)
EAN:
Part number:
Item no:
Product type
Pin housing cable
Connector type
Blade terminal, straight
No. of rows
2
Series
DT
Total number of pins
12
Number
Total (€ 12.60 / piece)
€ 12.60
plus VAT.
Only 1 Piece(s) available
Highlights & Details
Connector DT-Series
- Content: 1 pc(s)
- No. of rows: 2
- Total number of pins: 12
Our service for you
Technical specifications
- Product type
Pin housing cable
- Connector type
Blade terminal, straight
- No. of rows
2
- Connector system
wire-to-wire
- Series
DT
- Features
B-coded
- Pins per row
6
- Total number of pins
12
- Width
35.56 mm
- Content
1 pc(s)
- AWG max.
14
- AWG (min.)
20
- Dim
(L x W x H) 55.12 x 35.56 x 45.92 mm
- Connection angle
180°
- Case material
PA GF
- Manufacturer part #
DT04-12PB-L012
- Factory colour
Black
- Industrial packaging
No
- Height
45.92 mm
- Length
55.12 mm
- RoHS-compliant
Yes
IP68
- Max. temperature
+125 °C
- Min. temperature
-55 °C
- Type
DT04-12PB-L012
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1668101 TE Connectivity Pin housing cable DT Total number of pins 12 DT04-12PB-L012 1 pc(s)
Description
Hints
Contacts and fuse wedge not included in the delivery.
