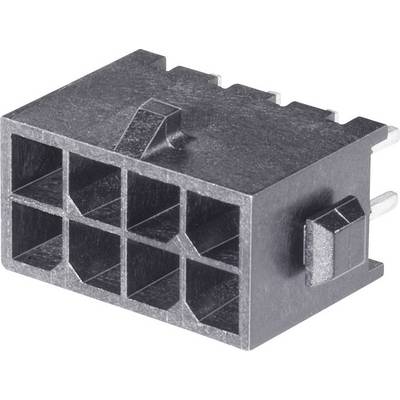

TE Connectivity Pin strip (standard) Micro-MATE-N-LOK Total number of pins 8 Contact spacing: 3 mm 3-794630-8 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Minimum order quantity: 2
Total (€ 1.08 / piece)
€
Highlights & Details
Micro MATE-N-LOK multi-pin connector
- Content: 1 pc(s)
- No. of rows: 2
- Total number of pins: 8
Technical specifications
- Connector type
Plug, straight
- Connector system
wire-to-board
- Series
Micro-MATE-N-LOK
- CS
3 mm
- Pins per row
4
- Total number of pins
8
- Pin shape
Square
- Nominal current
5 A
- Nominal current - rounded value
5 A
- Content
1 pc(s)
- Dim
(L x W x H) 8.67 x 12.86 x 9.24 mm
- Factory colour
Black
- Height
9.24 mm
- Length
8.67 mm
- Width
12.86 mm
- Industrial packaging
No
- Connection
Print
- Connector contact surface
Tin plated
- Board contact surface
Tin plated
- Connector orientation
Perpendicular (to the PCB)
- Manufacturer part #
3-794630-8
- Type
Micro-Mate-Lok
- Nominal voltage
250 V
- Mounting type
Lateral Latch
- Insulation material
Polyamide
- No. of rows
2
- Contact material
Brass
- Case material
Polyamide
- RoHS-compliant
Yes
- Max. temperature
+105 °C
- Min. temperature
-40 °C
- Product type
Pin strip (standard)
Documents & Downloads
Datasheet
Datasheet 1173252 TE Connectivity Pin strip (standard) Micro-MATE-N-LOK Total number of pins 8 Contact spacing: 3 mm 3-794630-8 1 pc(s)
Information
Information 1173252 TE Connectivity Pin strip (standard) Micro-MATE-N-LOK Total number of pins 8 Contact spacing: 3 mm 3-794630-8 1 pc(s)

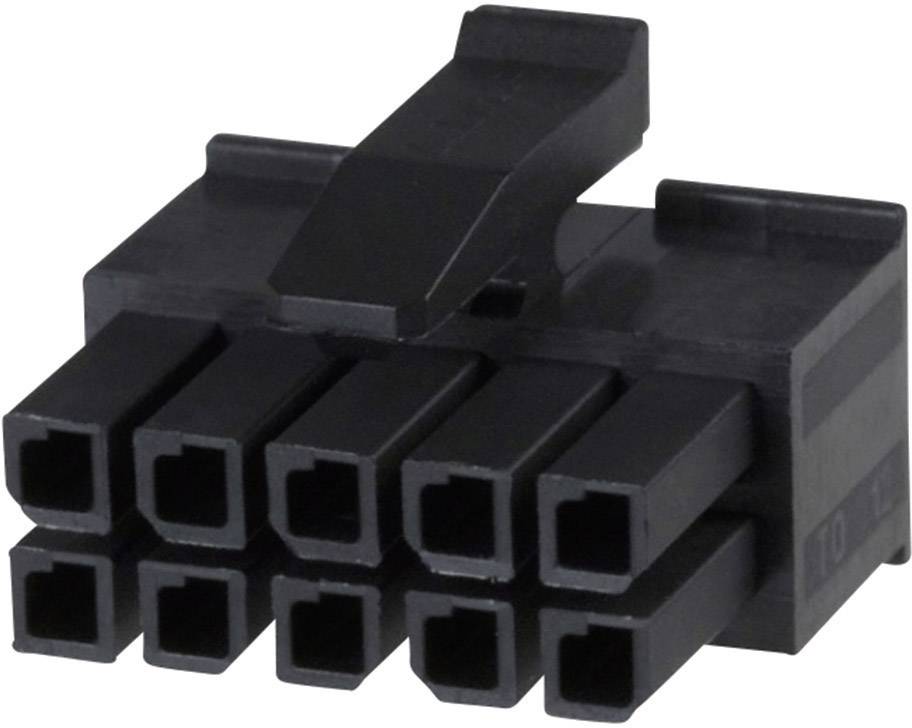

Frequently Bought Together
