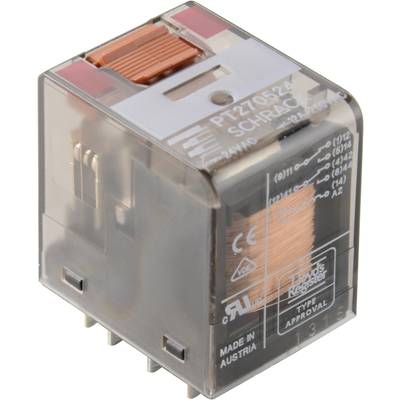

TE Connectivity PT370012 Mini relay 12 V DC 10 A 3 change-overs 1 pc(s)
EAN:
Part number:
Item no:
Product type
Mini relay
Coil nominal voltage
12 V DC
Control mode
monostable, 1 coil
Contact type
3 change-overs
Switching voltage (max.)
400 V AC
Datasheet (PDF)
Number
Total (€ 10.08 / piece)
€ 10.08
plus VAT.
Only 8 Piece(s) available
Highlights & Details
PT-Miniature relay
Technical specifications
- Contact material AgNi 90/10
- Coil voltage 6 - 220 V/DC/6 - 230 V/AC
- Product type
Mini relay
- Type
PT370012
- Coil nominal voltage
12 V DC
- Min. pick-up voltage
9 V DC
- Control mode
monostable, 1 coil
- Resistance (coil)
192 Ω
- Contact type
3 change-overs
- Contact material
AgNi 90/10
- Switching voltage (max.)
400 V AC
- Switching current (max.)
10 A
- Max. switching capacity
2500 VA
- Connection
Solder pins
- Min. temperature
-40 °C
- Max. temperature
+70 °C
- Length
28 mm
- Width
22.5 mm
- Height
29 mm
- Dim
(L x W x H) 28 x 22.5 x 29 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
- Nominal voltage (details)
12 V DC
- Nominal current (details)
10 A
- Switching capacity
2500 VA
- Switching voltage
250V/AC 440 V AC
- Switching current
10 A
- Ambient temperature
-40 - +70 °C
Documents & Downloads
Datasheet
Datasheet 503974 TE Connectivity PT370012 Mini relay 12 V DC 10 A 3 change-overs 1 pc(s)
Description
Applications: Universal use in control and mechanical engineering.
Hints
Approvals: VDE, cULus.
