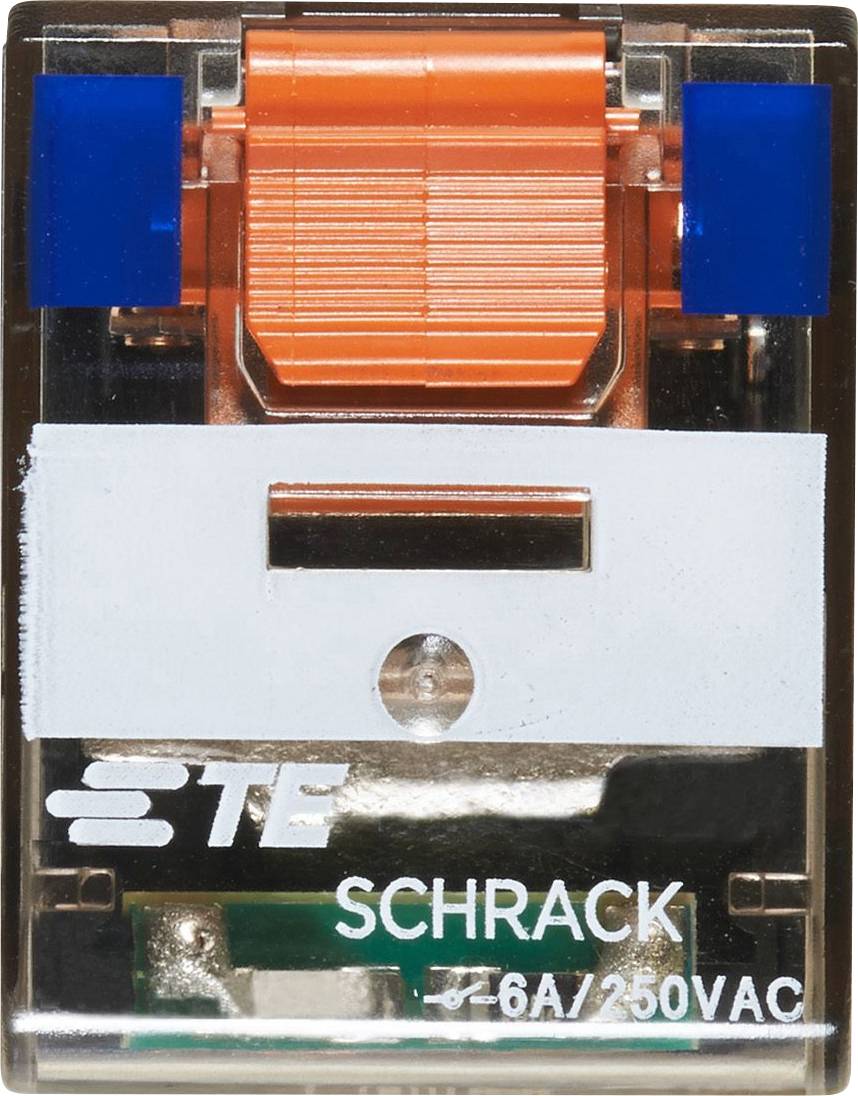

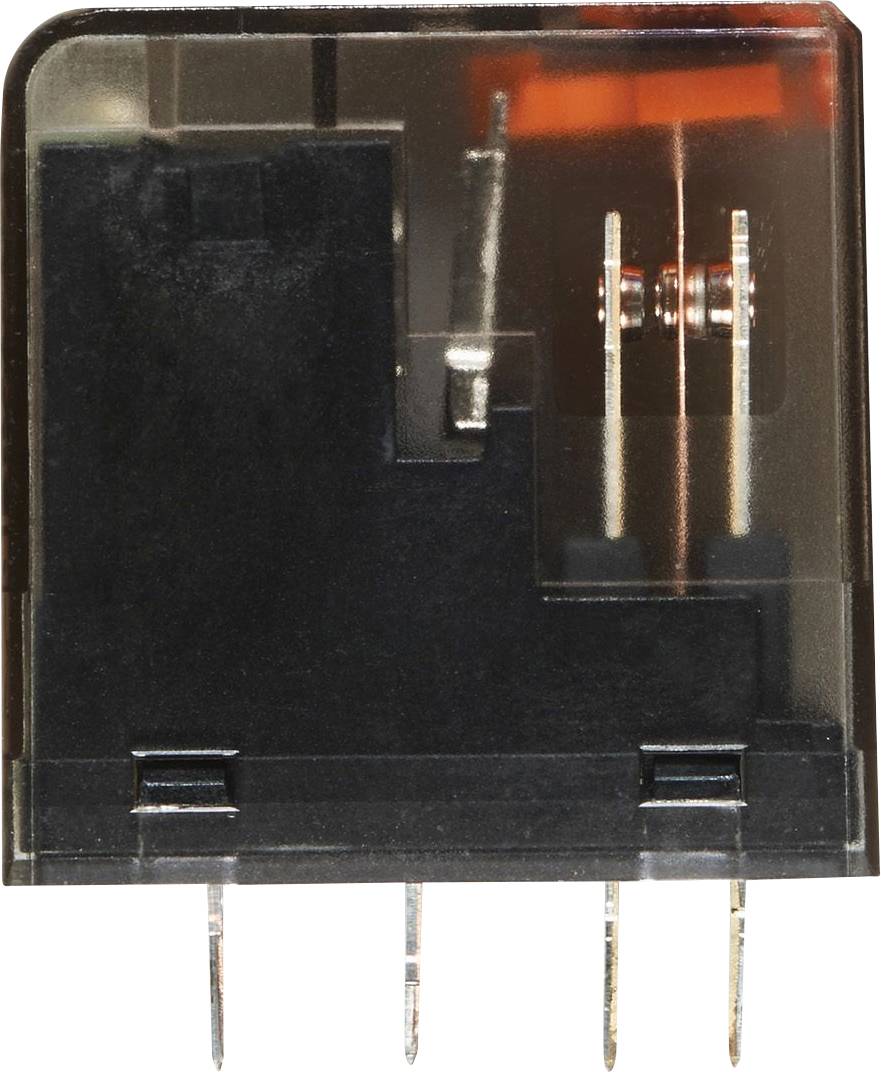

TE Connectivity PT570L24 Industrial relay Nominal voltage: 24 V DC 4 change-overs Piece 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Industrial relay
Contact type
4 change-overs
Nominal voltage
24 V DC
Type
PT570L24
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.92
3
6% = € 0.61
€ 10.31
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.92 / piece)
€ 10.92
plus VAT.
14-day return policy included
Highlights & Details
TE Connectivity PT570L24 Industrial relay Nominal voltage: 24 V DC 4 change-overs Piece 1 pc(s)
Our service for you
Technical specifications
- Type of relay mounting: Plug base
- sealing class: RTII
- insulation distance class (mm): 2.5 – 4
- insulation creep current class (mm): 3 – 5.5
- insulation probe functions: Original standing surge voltage of 5,000 V between contacts & coil
- contact cut-off current (A): 6
- contact switch-on current (A): 12
- contact limit current (A): 300
- contact numbers of the 4
- magnet system: Monostable, DC
- Packaging type
Piece
- Product type
Industrial relay
- Type
PT570L24
- Connection
Soldering
Plug
- Contact type
4 change-overs
- Contact material
AgNi 90/10
- Nominal voltage
24 V DC
- Creepage distance (coil/clips)
4 mm
- Resistance (coil)
777 Ω
- Coil voltage rating
759 mW
- Features
+ LED display
- Max. temperature
+70 °C
- Min. temperature
-40 °C
- Length
28 mm
- Width
22.5 mm
- Height
29 mm
- Dim
(L x W x H) 28 x 22.5 x 29 mm
- Content
1 pc(s)
- Weight
30 g
- RoHS-compliant
Yes
