Buy TE Connectivity RT314F05 Industrial relay Nominal voltage: 5 V DC 1 change-over Piece 1 pc(s)

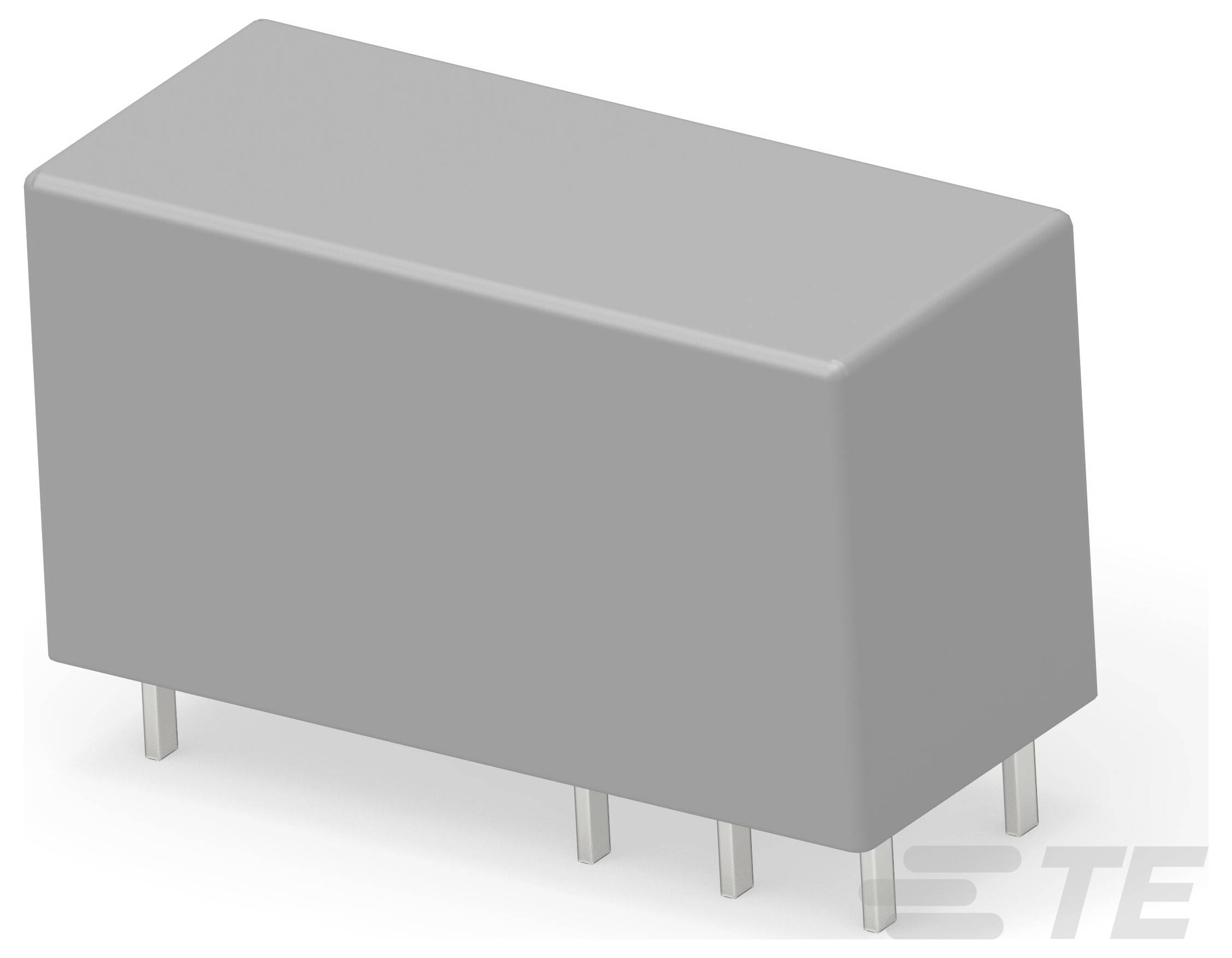

A gray rectangular electronic component with five metal pins at the bottom, indicating it is likely a relay or connector.

Image similar

Packaging type

Piece

Product type

Industrial relay

Contact type

1 change-over

Nominal voltage

5 V DC

Type

RT314F05

Fast track dispatch on Thu, 1 Oct

8 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 6.29 / piece)

€ 6.29

plus VAT.

Only 8 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

TE Connectivity RT314F05 Industrial relay Nominal voltage: 5 V DC 1 change-over Piece 1 pc(s)

Our service for you

Technical specifications

Type of relay mounting: PCB, plug-in base
sealing class: RTII
insulation distance class (mm): 8
insulation creep current class (mm): 8
insulation probe functions: Tracking index of relay base PTI250
contact cut-off current (A): 16
contact switch-on current (A): 30
contact limit current (A): 16
contact numbers of the poles: 1
magnet system: Bistable, 2 coils, polarized

Packaging type: Piece

Product type: Industrial relay

Type: RT314F05

Connection: THT
Plug

Contact type: 1 change-over

Contact material: AgNi 90/10

Nominal voltage: 5 V DC

Creepage distance (coil/clips): 10 mm

Resistance (coil): 42 Ω

Coil voltage rating: 595 mW

Length: 29 mm

Width: 12.7 mm

Height: 15.7 mm

Dim: (L x W x H) 29 x 12.7 x 15.7 mm

Content: 1 pc(s)

Weight: 14 g

RoHS-compliant: Yes
