Buy TE Connectivity RT334012 Industrial relay Nominal voltage: 12 V DC 1 maker 1 pc(s)

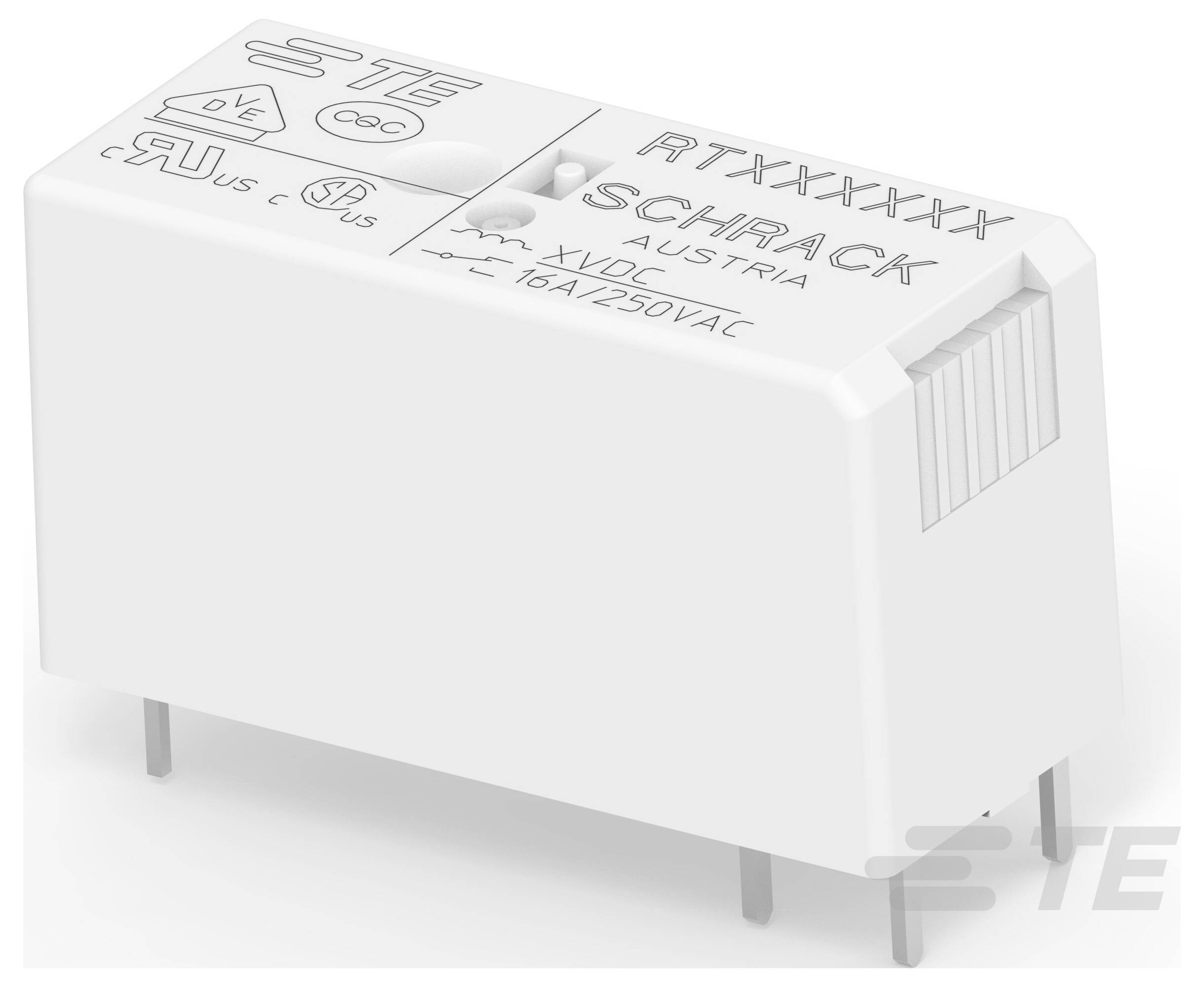

A rectangular white relay component labeled 'RTXXXXX SCHRACK AUSTRIA', capable of switching '16A/250VAC' with several certification marks.

Image similar

Product type

Industrial relay

Contact type

1 maker

Nominal voltage

12 V DC

Type

RT334012

Connection

THT

Plug

Fast track dispatch on Fri, 2 Oct

17 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 2.93 / piece)

€ 2.93

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

TE Connectivity RT334012 Industrial relay Nominal voltage: 12 V DC 1 maker 1 pc(s)

Our service for you

Technical specifications

Type of relay mounting: PCB, plug-in base
sealing class: RTII
insulation distance class (mm): 8
insulation creep current class (mm): 8
insulation probe functions: Tracking index of relay base PTI250
contact cut-off current (A): 16
contact switch-on current (A): 30
contact limit current (A): 16
contact numbers of the poles: 1
magnet system: Monostable, DC

Product type: Industrial relay

Type: RT334012

Connection: THT
Plug

Contact type: 1 maker

Contact material: AgNi 90/10

Nominal voltage: 12 V DC

Creepage distance (coil/clips): 10 mm

Resistance (coil): 360 Ω

Coil voltage rating: 400 mW

Length: 29 mm

Width: 12.7 mm

Height: 15.7 mm

Dim: (L x W x H) 29 x 12.7 x 15.7 mm

Content: 1 pc(s)

Weight: 14 g

RoHS-compliant: Yes
