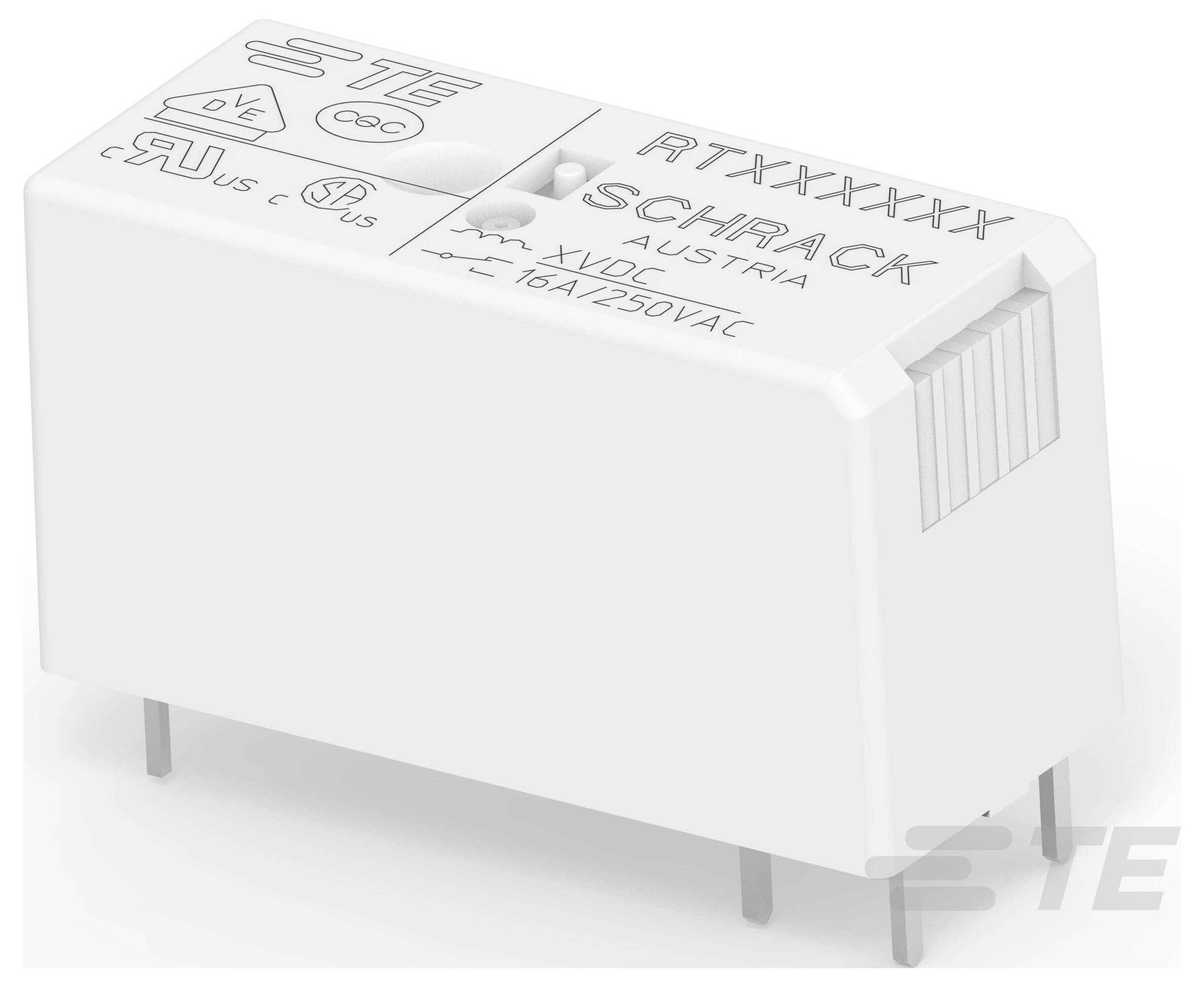

TE Connectivity RT33L024 Industrial relay Nominal voltage: 24 V DC 1 maker Piece 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Industrial relay
Contact type
1 maker
Nominal voltage
24 V DC
Type
RT33L024
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.45
5
6% = € 0.32
€ 5.13
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.45 / piece)
€ 5.45
plus VAT.
14-day return policy included
Highlights & Details
TE Connectivity RT33L024 Industrial relay Nominal voltage: 24 V DC 1 maker Piece 1 pc(s)
Our service for you
Technical specifications
- Type of relay mounting: PCB, plug-in base
- sealing class: RTII
- insulation distance class (mm): 8
- insulation creep current class (mm): 8
- insulation probe functions: Tracking index of relay base PTI250
- contact cut-off current (A): 16
- contact switch-on current (A): 30
- contact limit current (A): 16
- contact numbers of the poles: 1
- magnet system: Monostable, DC
- Packaging type
Piece
- Product type
Industrial relay
- Type
RT33L024
- Connection
THT
Plug
- Max. pick-up voltage
24 V DC
- Contact type
1 maker
- Contact material
AgSnO2
- Nominal voltage
24 V DC
- Creepage distance (coil/clips)
10 mm
- Resistance (coil)
1440 Ω
- Coil voltage rating
400 mW
- Length
29 mm
- Width
12.7 mm
- Height
15.7 mm
- Dim
(L x W x H) 29 x 12.7 x 15.7 mm
- Content
1 pc(s)
- Weight
14 g
- RoHS-compliant
Yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2272811 TE Connectivity RT33L024 Industrial relay Nominal voltage: 24 V DC 1 maker Piece 1 pc(s)
