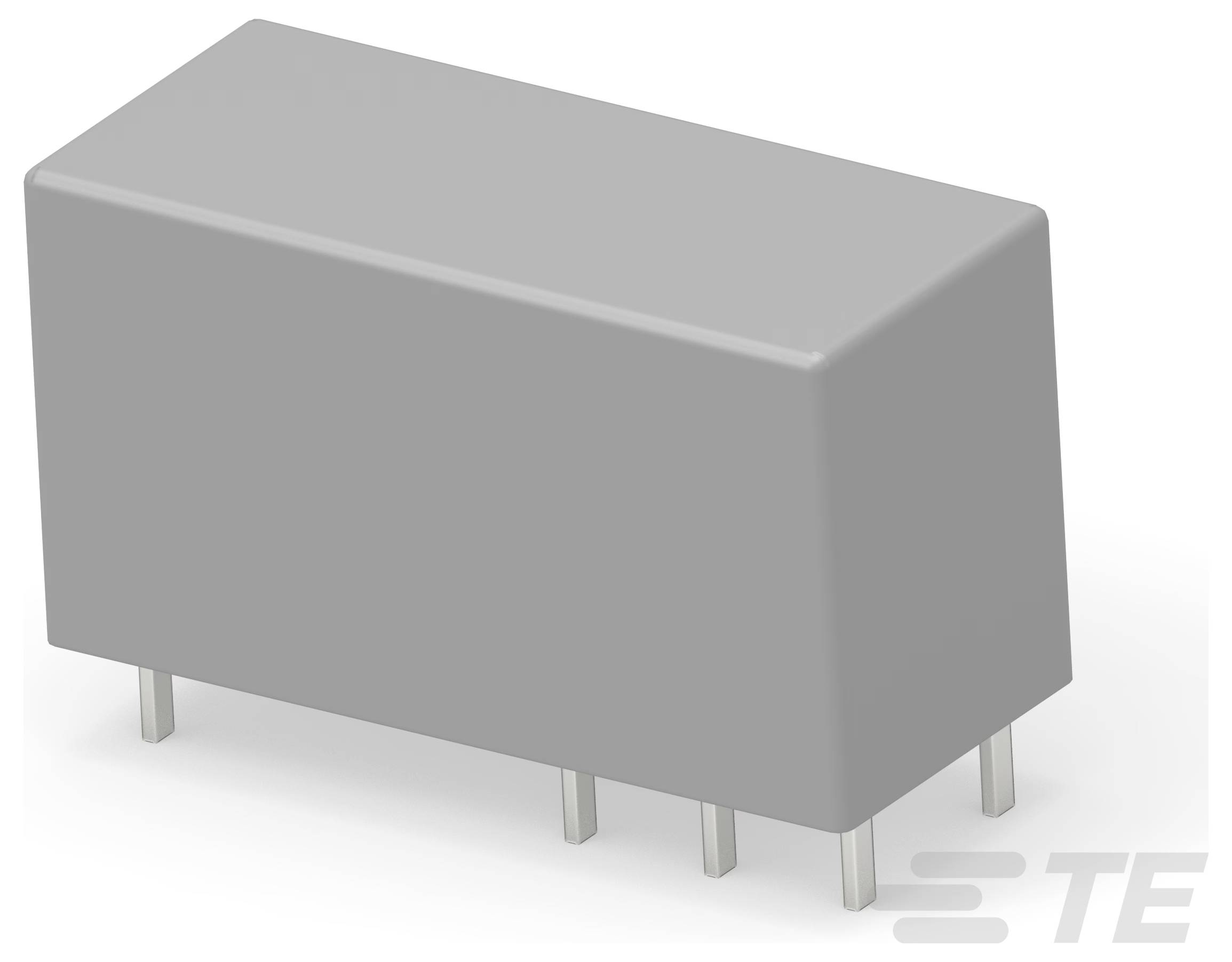

TE Connectivity RT425024 Industrial relay Nominal voltage: 24 V DC 2 change-overs Piece 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Industrial relay
Contact type
2 change-overs
Nominal voltage
24 V DC
Type
RT425024
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.92
3
6% = € 0.61
€ 10.31
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.92 / piece)
€ 10.92
plus VAT.
Only 2 Piece(s) available
Highlights & Details
Our service for you
Technical specifications
- Type of relay mounting: PCB, plug-in base
- sealing class: RTII
- insulation distance class (mm): 8
- insulation creep current class (mm): 8
- insulation probe functions: Tracking index of relay base PTI250
- contact cut-off current (A): 8
- contact coating material: Gold
- contact switch-on current (A): 15
- contact limit current (A): 8
- contact numbers of the 2
- magnet system: Monostable, DC
- Packaging type
Piece
- Product type
Industrial relay
- Type
RT425024
- Connection
THT
Plug
- Contact type
2 change-overs
- Contact material
AgNi 90/10
- Nominal voltage
24 V DC
- Creepage distance (coil/clips)
10 mm
- Resistance (coil)
1440 Ω
- Coil voltage rating
400 mW
- Length
29 mm
- Width
12.7 mm
- Height
15.7 mm
- Dim
(L x W x H) 29 x 12.7 x 15.7 mm
- Content
1 pc(s)
- Weight
13 g
- RoHS-compliant
Yes
