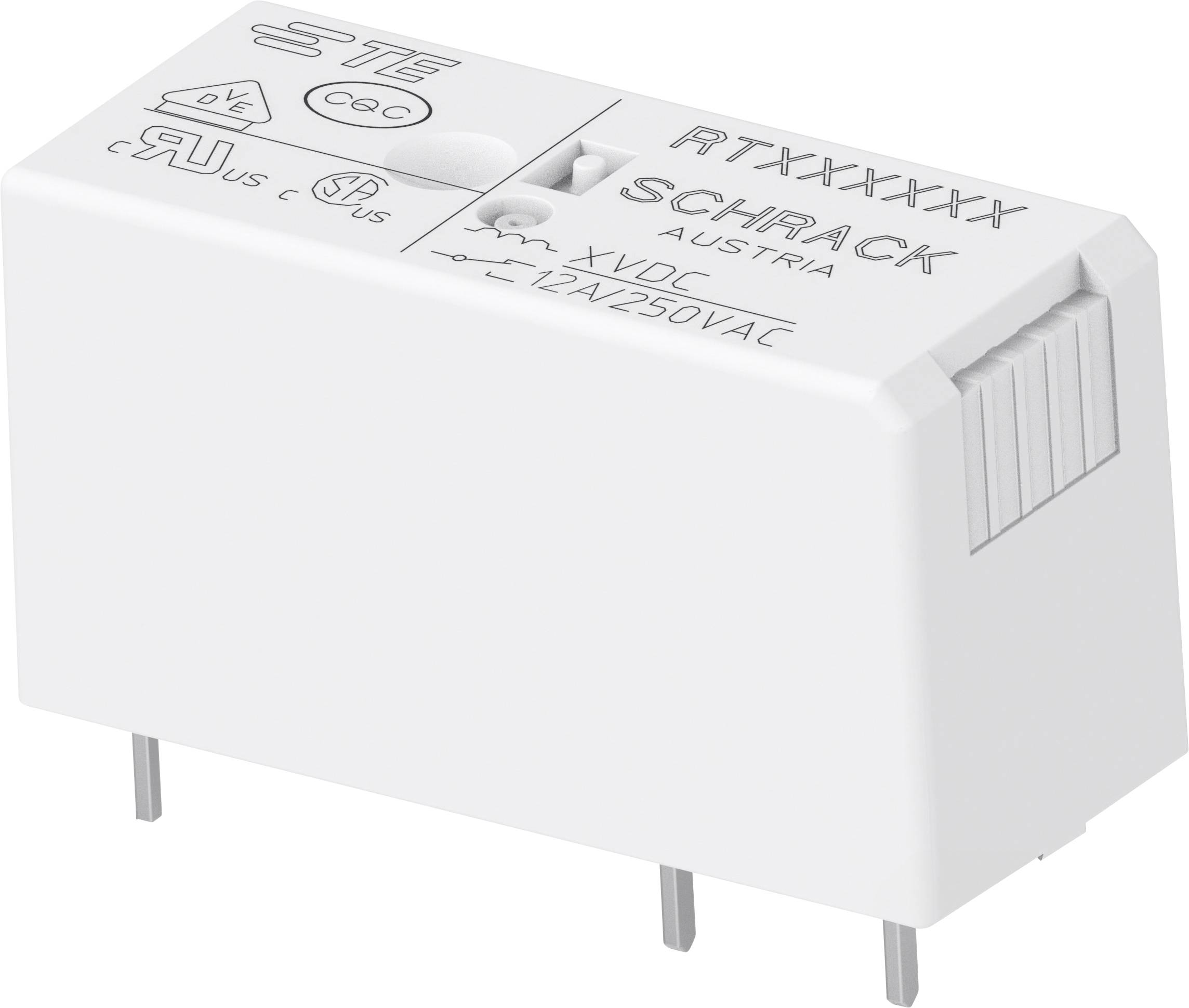

TE Connectivity RTB74012 Industrial relay Nominal voltage: 12 V DC 1 change-over 1 pc(s)
EAN:
Part number:
Item no:
Product type
Industrial relay
Contact type
1 change-over
Nominal voltage
12 V DC
Type
RTB74012
Connection
THT
Plug
Number
Total (€ 5.45 / piece)
€ 5.45
plus VAT.
Only 10 Piece(s) available
Highlights & Details
TE Connectivity RTB74012 Industrial relay Nominal voltage: 12 V DC 1 change-over 1 pc(s)
Our service for you
Technical specifications
- Type of relay mounting: PCB, plug-in base
- sealing class: RTIII
- insulation distance class (mm): 8
- insulation creep current class (mm): 8
- insulation probe functions: Tracking index of relay base PTI250
- contact cut-off current (A): 10
- contact switch-on current (A): 15
- contact duration limit current (A): 10
- contact numbers of the poles: 1
- magnet system: Monostable, DC
- Product type
Industrial relay
- Type
RTB74012
- Connection
THT
Plug
- Contact type
1 change-over
- Contact material
AgNi 90/10
- Nominal voltage
12 V DC
- Creepage distance (coil/clips)
10 mm
- Resistance (coil)
360 Ω
- Coil voltage rating
250 mW
- Length
29 mm
- Width
12.7 mm
- Height
15.7 mm
- Dim
(L x W x H) 29 x 12.7 x 15.7 mm
- Content
1 pc(s)
- Weight
14 g
- RoHS-compliant
Yes
