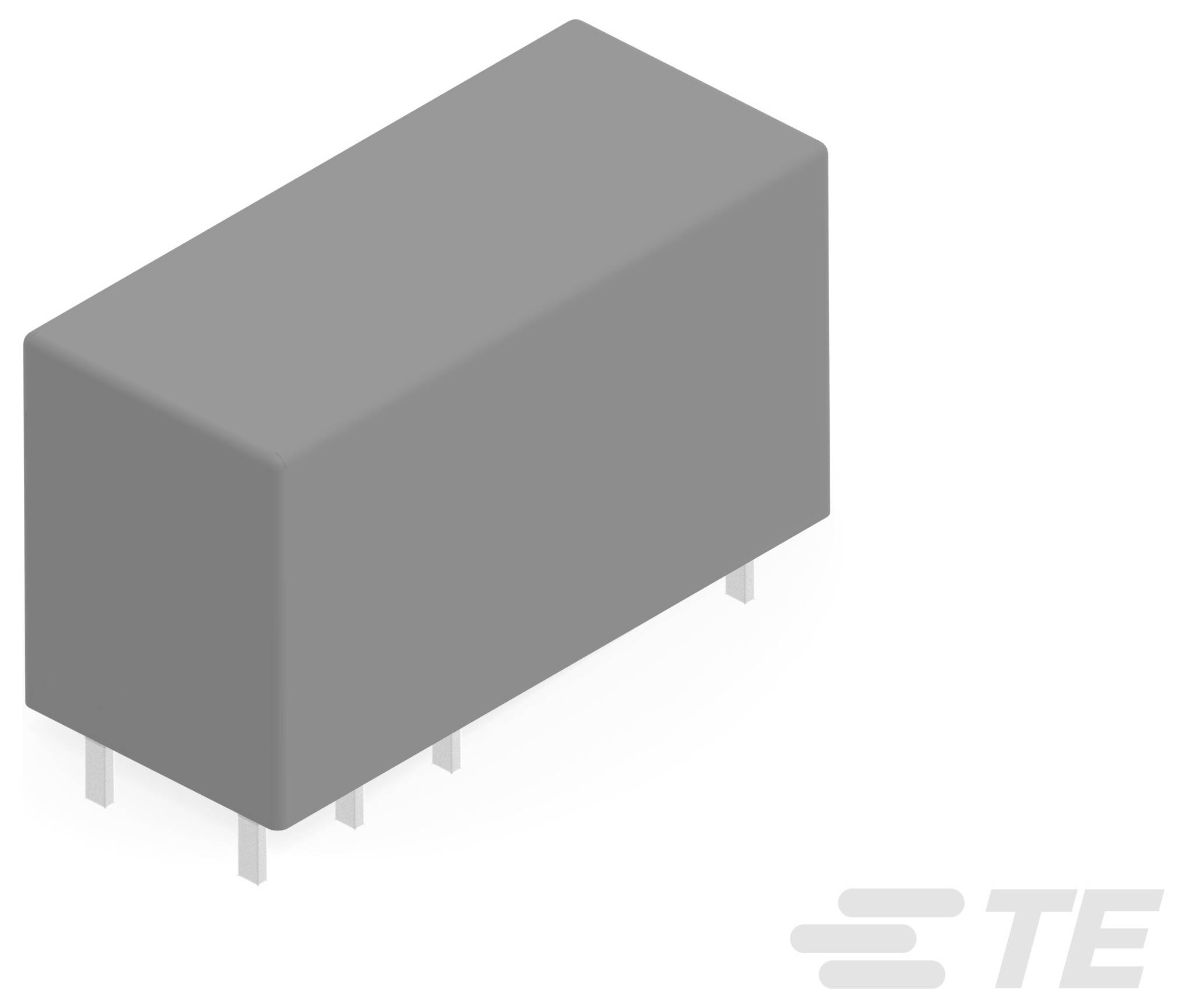

TE Connectivity RTE24012 Industrial relay Nominal voltage: 12 V DC 2 change-overs Piece 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Industrial relay
Contact type
2 change-overs
Nominal voltage
12 V DC
Type
RTE24012
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 3.77
5
6% = € 0.24
€ 3.53
10
9% = € 0.34
€ 3.43
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 3.77 / piece)
€ 3.77
plus VAT.
14-day return policy included
Highlights & Details
TE Connectivity RTE24012 Industrial relay Nominal voltage: 12 V DC 2 change-overs Piece 1 pc(s)
Our service for you
Technical specifications
- Type of relay mounting: PCB, plug-in base
- sealing class: RTIII
- insulation distance class (mm): 8
- insulation creep current class (mm): 8
- insulation probe functions: Tracking index of relay base PTI250
- contact cut-off current (A): 8
- contact switch-on current (A): 15
- contact duration limit current (A): 8
- contact numbers of the poles: 2
- magnet system: Monostable, DC
- Packaging type
Piece
- Product type
Industrial relay
- Type
RTE24012
- Connection
THT
Plug
- Contact type
2 change-overs
- Contact material
AgNi 90/10
- Nominal voltage
12 V DC
- Creepage distance (coil/clips)
10 mm
- Resistance (coil)
360 Ω
- Coil voltage rating
400 mW
- Length
29 mm
- Width
12.7 mm
- Height
15.7 mm
- Dim
(L x W x H) 29 x 12.7 x 15.7 mm
- Content
1 pc(s)
- Weight
13 g
- RoHS-compliant
Yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2272780 TE Connectivity RTE24012 Industrial relay Nominal voltage: 12 V DC 2 change-overs Piece 1 pc(s)
