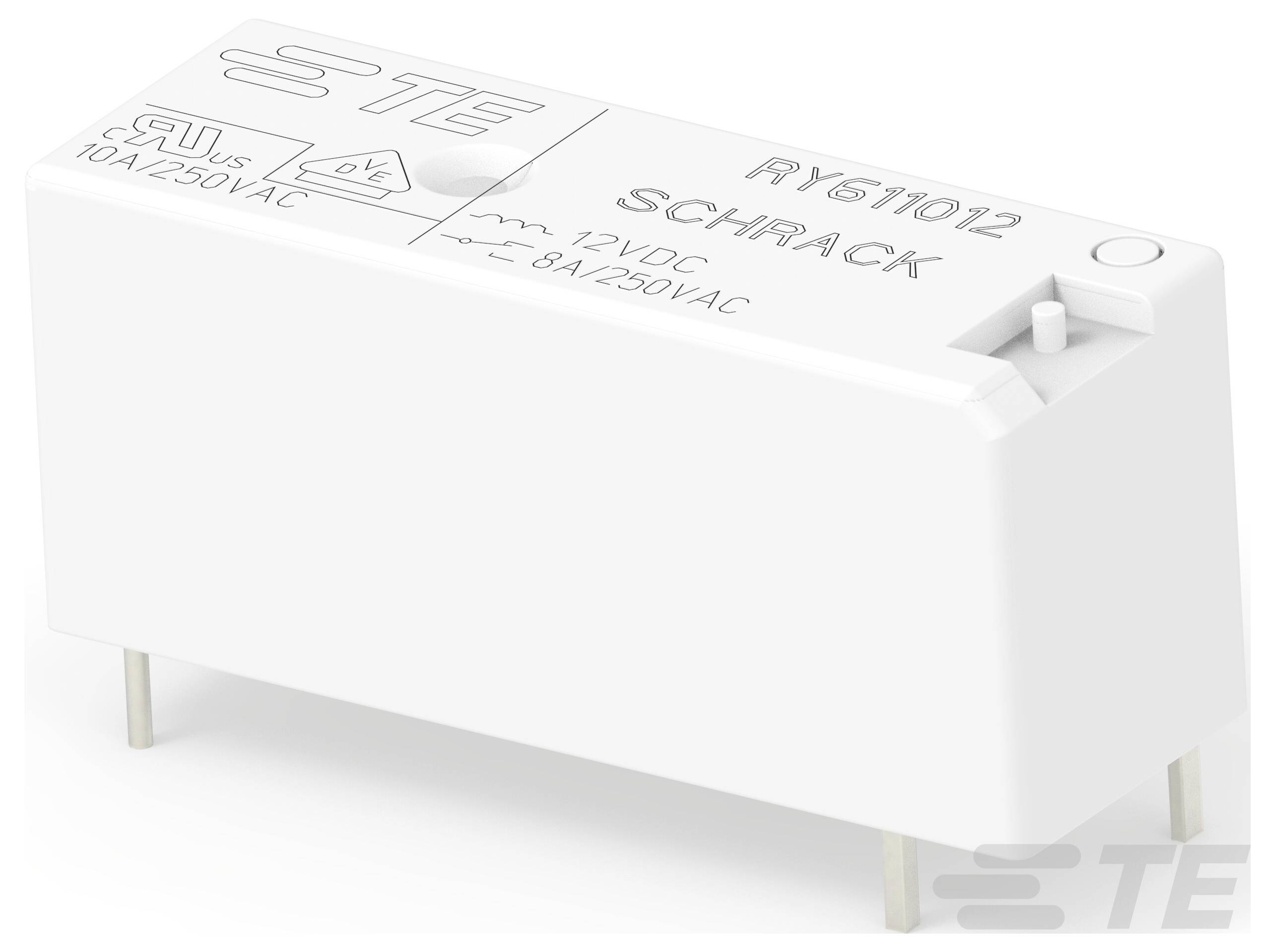

TE Connectivity RY611012 Industrial relay Nominal voltage: 12 V DC 1 change-over 1 pc(s)
EAN:
Part number:
Item no:
Product type
Industrial relay
Contact type
1 change-over
Nominal voltage
12 V DC
Type
RY611012
Connection
THT
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 3.18
10
7% = € 0.23
€ 2.95
25
10% = € 0.33
€ 2.85
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 3.18 / piece)
€ 3.18
plus VAT.
14-day return policy included
Highlights & Details
TE Connectivity RY611012 Industrial relay Nominal voltage: 12 V DC 1 change-over 1 pc(s)
Our service for you
Technical specifications
- Type of relay mounting: PCB
- sealing class: RTIII
- insulation distance class (mm): 5 – 8
- insulation creep current class (mm): 5.5 – 8
- insulation probe functions: Tracking index of relay lower section PTI250
- contact cut-off current (A): 8
- contact switch-on current (A): 8
- contact limit current (A): 8
- contact limit current (A): 8
- contact number of poles: 1
- magnet system: Monostable DC
- Product type
Industrial relay
- Type
RY611012
- Connection
THT
- Contact type
1 change-over
- Contact material
AgNi
- Nominal voltage
12 V DC
- Creepage distance (coil/clips)
8 mm
- Resistance (coil)
627 Ω
- Coil voltage rating
230 mW
- Features
Washable (RT III)
- Length
28.5 mm
- Width
10.1 mm
- Height
12.3 mm
- Dim
(L x W x H) 28.5 x 10.1 x 12.3 mm
- Content
1 pc(s)
- Weight
8 g
- RoHS-compliant
Yes
