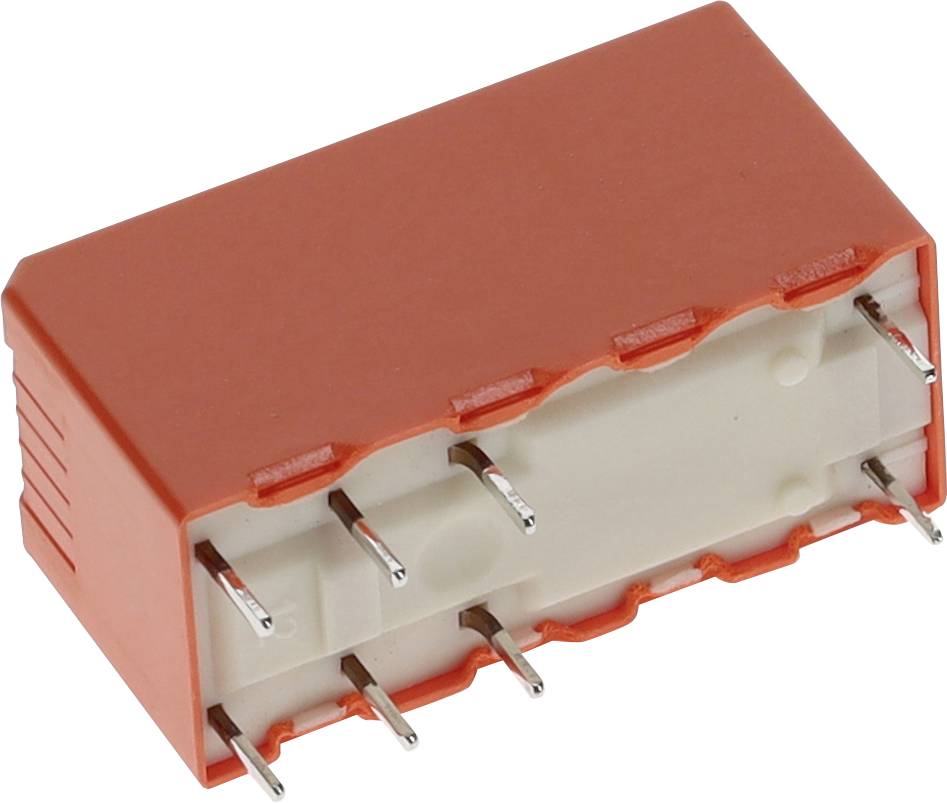

TE Connectivity RZ03-1C4-D012 Industrial relay Nominal voltage: 12 V DC 1 change-over Piece 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Industrial relay
Contact type
1 change-over
Nominal voltage
12 V DC
Type
RZ03-1C4-D012
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.51
10
7% = € 0.18
€ 2.33
25
10% = € 0.26
€ 2.25
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.51 / piece)
€ 2.51
plus VAT.
14-day return policy included
Highlights & Details
Our service for you
Technical specifications
- Type of relay mounting: PCB
- sealing class: RTII
- insulation distance class (mm): 8
- insulation creep current class (mm): 8
- insulation probe functions: Tracking index of relay base PTI250
- contact cut-off current (A): 16
- contact cut-in current (A): 30
- contact limit current (A): 16
- contact numbers of the poles: 1
- magnet system: Monostable, DC
- Packaging type
Piece
- Product type
Industrial relay
- Type
RZ03-1C4-D012
- Connection
THT
- Contact type
1 change-over
- Contact material
AgNi 90/10
- Nominal voltage
12 V DC
- Creepage distance (coil/clips)
10 mm
- Resistance (coil)
360 Ω
- Coil voltage rating
400 mW
- Length
29 mm
- Width
12.7 mm
- Height
15.7 mm
- Dim
(L x W x H) 29 x 12.7 x 15.7 mm
- Content
1 pc(s)
- Weight
10 g
- RoHS-compliant
Yes
