TE Connectivity Shunt 0.36 Ω 1 W (W x H) 3.1 mm x 0.6 mm 1 pc(s) Tape on Full reel

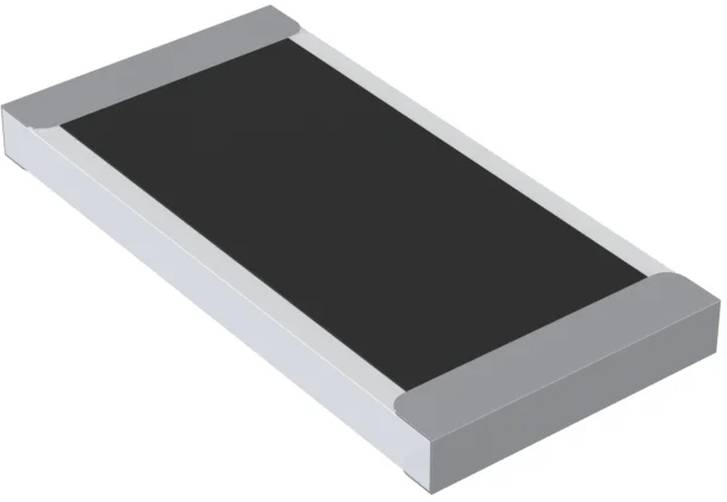

A black rectangular electronic component with metallic edges, viewed at an angle, possibly a chip resistor or capacitor for circuit boards.

A black rectangular electronic component with metallic edges, viewed at an angle, possibly a chip resistor or capacitor for circuit boards.

Image similar

Our service for you

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Packaging type: Tape on Full reel

Product type: Shunt

Type: SMD

Type: 2512

Resistance: 0.36 Ω

Power rating: 1 W

Tolerance ±: 2 %

Width: 3.1 mm

Height: 0.6 mm

Content: 1 pc(s)

Dim: (W x H) 3.1 mm x 0.6 mm

Type: 2-1622825-0

Engineering Part No: RL73K3AR36GTE

Documents & Downloads

Datasheet

Datasheet 3184842 TE Connectivity Shunt 0.36 Ω 1 W (W x H) 3.1 mm x 0.6 mm 1 pc(s) Tape on Full reel

User & Safety Instructions

User & Safety Instructions 3184842 TE Connectivity Shunt 0.36 Ω 1 W (W x H) 3.1 mm x 0.6 mm 1 pc(s) Tape on Full reel

Description

Fixed Resistor, Thick Film, 1W, 0.36Ohm, 2% +/-Tol, -200, 200Ppm/Cel, Surface Mount, 2512

Description

Fixed Resistor, Thick Film, 1W, 0.36Ohm, 2% +/-Tol, -200, 200Ppm/Cel, Surface Mount, 2512
