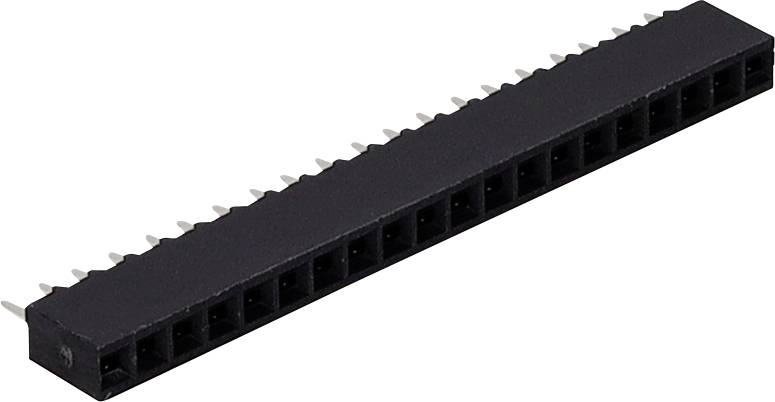

TE Connectivity SIL socket (standard) No. of rows: 1 6-535541-8 1 pc(s)
EAN:
Part number:
Item no:
Connector type
Socket
Product type
SIL socket (standard)
No. of rows
1
CS
2.54 mm
Connection
THT
Soldering
Number
Total (€ 2.51 / piece)
€ 2.51
plus VAT.
Only 3 Piece(s) available
Highlights & Details
- Content 1 pc(s)
- No. of rows 1
Technical specifications
- Sealable: No
- Connector & contact connection to: PCB
- pin and remaining length: 3.18 mm
- Number of positions: 20
- Type of connector assembly: PCB mounting
- Contact rating current (max.): 3 A
- Contact type: Socket
- Mounting orientation for PCB:
- Vertically stackable: Yes
- Connector system: PCB-to-PCB
- Connector type
Socket
- Product type
SIL socket (standard)
- No. of rows
1
- CS
2.54 mm
- Connection
THT
Soldering
- Factory colour
Black
- Nominal voltage
333 V AC
- Nominal current
3 A
- Nominal current - rounded value
3 A
- Contact surface
Gold (Au)
- Contact material
Phosphorus bronze
- Case material
Polyester
- Manufacturer part #
6-535541-8
- Socket shape
Square
- Content
1 pc(s)
- Height
3.56 mm
- Max. temperature
+125 °C
- Min. temperature
-65 °C
- Type
AMPMODU MOD IV
