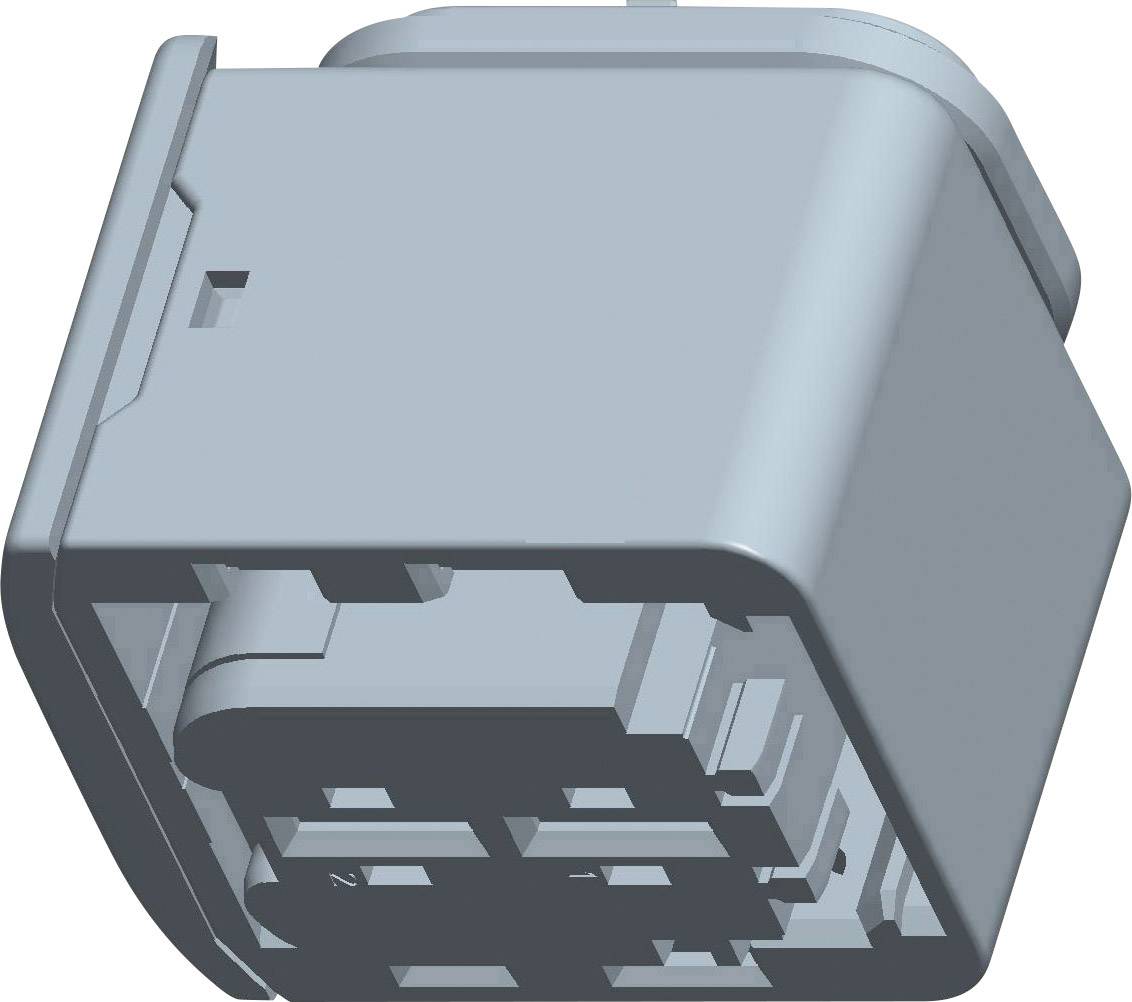

TE Connectivity Socket housing cable HDSCS, MCP Total number of pins 2 1-1564542-1 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
123 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 1.50
10
7% = € 0.11
€ 1.39
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 1.50 / piece)
€ 2.09
-28 %
€
Highlights & Details
Socket housing HDSCS, MCP
- Content: 1 pc(s)
- No. of rows: 1
- Total number of pins: 2
Technical specifications
- Connector type
Socket, straight
- Connector system
automotive
- Series
HDSCS, MCP
- Pins per row
2
- Total number of pins
2
- Pin shape
Rectangular
- Content
1 pc(s)
- Dim
(L x W x H) 25.7 x 44 x 31.25 mm
- Factory colour
Black
- Height
31.25 mm
- Length
25.7 mm
- Width
44 mm
- Industrial packaging
No
IP67/IP69K
- Connection
Type C CEE 7/16 plug 6.3 mm
- Connector contact surface
Tin plated
- Manufacturer part #
1-1564542-1
- Type
HDSCS, MCP
- Nominal voltage
42 V DC
- AWG max.
9
- AWG (min.)
9
- max. cross section
6 mm²
- Insulation material
Thermoplastic material
- No. of rows
1
- Min. cross section
6 mm²
- Code
A
- Case material
Thermoplastic material
- RoHS-compliant
Yes
- Max. temperature
+140 °C
- Min. temperature
-40 °C
- Product type
Socket housing cable
Documents & Downloads
Datasheet
Datasheet 1311585 TE Connectivity Socket housing cable HDSCS, MCP Total number of pins 2 1-1564542-1 1 pc(s)
Datasheet 1311585 TE Connectivity Socket housing cable HDSCS, MCP Total number of pins 2 1-1564542-1 1 pc(s)
Information
Information 1311585 TE Connectivity Socket housing cable HDSCS, MCP Total number of pins 2 1-1564542-1 1 pc(s)
Description
Scope of delivery
- Without Contacts
