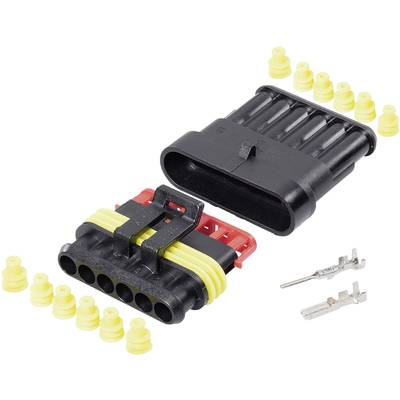

TE Connectivity Super seal set AMP-Superseal 1.5mm Series Total number of pins 6 Contact spacing: 6 mm 30S007 1 Set
EAN:
Part number:
Item no:
Product type
Super seal set
Connector type
Plug, straight
Socket, straight
No. of rows
1
Series
AMP-Superseal 1.5mm Series
CS
6 mm
Datasheet (PDF)
Quantity (Set(s))
Savings
Package size (plus VAT.)
1
-
€ 20.16
3
5% = € 1.00
€ 19.16
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 20.16 / piece)
€ 20.16
plus VAT.
Highlights & Details
AMP-SUPERSEAL-plug connector set
- Content: 1 Set
- No. of rows: 1
- Total number of pins: 6
Technical specifications
- Product type
Super seal set
- Connector type
Plug, straight
Socket, straight
- No. of rows
1
- Connector system
automotive
- Series
AMP-Superseal 1.5mm Series
- CS
6 mm
- Pins per row
6
- Total number of pins
6
- Pin shape
Rectangular
- Nominal current
14 A
- Nominal current - rounded value
14 A
- Content
1 Set
- Connection
Type C CEE 7/16 plug 1.5 mm
Crimp
- Case material
Polyamide
- Manufacturer part #
30S007
- Factory colour
Black
- Insulation material
Polyamide
- Nominal voltage
24 V DC
- Max. temperature
+125 °C
- Min. temperature
-40 °C
- Type
30S007
Documents & Downloads
Datasheet
Datasheet 1545107 TE Connectivity Super seal set AMP-Superseal 1.5mm Series Total number of pins 6 Contact spacing: 6 mm 30S007 1 Set
Description
These plug connectors are overall used where its not only about water tightness, but also about resistance to ozone, salts, petrol, diesel, brake fluid and engine oils. All plug connectors fulfil the standards of IEC 529 and DIN 40050 IP 67.
Application area: Power supplies, Sensors, general Industrial applications.
Application area: Power supplies, Sensors, general Industrial applications.
Scope of delivery
- 3 x connector
- 3x socket
- 36 x contacts
- 36 x seals
